LTC1728ES5-1.8#TRMPBF - Analog Devices

Description: Linear Technology LTC1728ES5-1.8#TRMPBF, Triple Voltage Reference, 1.8 → 3 V, Reset Input, 5-Pin SOT-23

Download LTC1728ES5-1.8#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

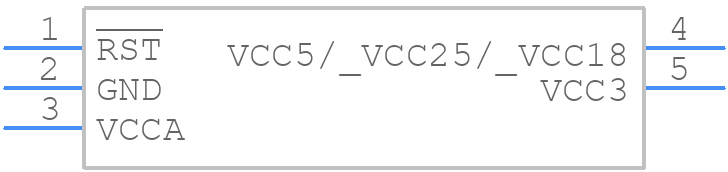

Symbol
LTC1728ES5-1.8#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1728ES5-1.8#TRMPBF - Analog Devices PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - S5 Package 5-Lead Plastic TSOT-23 (Reference LTC DWG # 05-08-1635)
click to zoom
3D Models
LTC1728ES5-1.8#TRMPBF - Analog Devices - 3D model - SOT23 (5-Pin) - S5 Package 5-Lead Plastic TSOT-23 (Reference LTC DWG # 05-08-1635)
click to zoom

LTC1728ES5-1.8#TRMPBF Details

  • Manufacturer Part Number:

    LTC1728ES5-1.8#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, SC-74A, SOT-23, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    05-08-1635

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC1728ES5-1.8#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1728 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is within the recommended range (10uF to 100uF), the input capacitor is at least 1uF, and the feedback resistors are within the recommended range (1kΩ to 10kΩ). Also, ensure the PCB layout is well-designed and the device is properly decoupled.
  • The maximum input voltage that the LTC1728 can handle is 6V. Exceeding this voltage may damage the device.
  • The LTC1728 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using a heat sink or thermal management system in high-temperature environments.
  • The output voltage of the LTC1728 can be calculated using the formula: Vout = 1.8V * (1 + R2/R1), where R1 and R2 are the feedback resistors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1728ES5-1.8#TRMPBF Overview

Use the download button to access the LTC1728ES5-1.8#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
