LTC1733EMSE#PBF - Analog Devices

Description: Linear Technology LTC1733EMSE#PBF, Battery Charger Lithium-Ion, 10-Pin MSOP

Download LTC1733EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

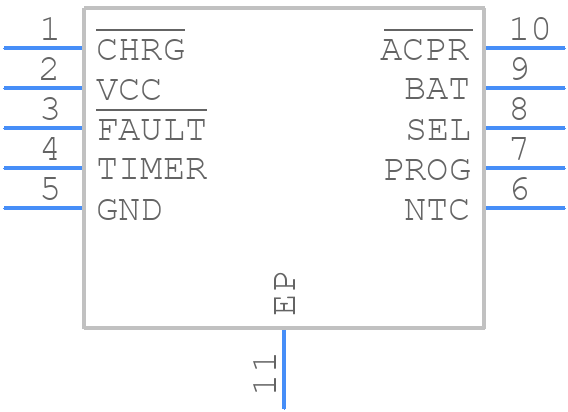

LTC1733EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1733EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE(MSOP)_4
click to zoom
3D Models
LTC1733EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE(MSOP)_4
click to zoom

LTC1733EMSE#PBF Details

  • Manufacturer Part Number:

    LTC1733EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1733EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1733EMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is within the recommended range (10uF to 100uF), the input capacitor is at least 10uF, and the ESR of the output capacitor is within the recommended range (0.05Ω to 1Ω). Also, ensure the PCB layout is well-designed and the IC is properly decoupled.
  • The maximum input voltage that the LTC1733EMSE can handle is 18V. Exceeding this voltage may damage the IC.
  • The LTC1733EMSE is rated for operation up to 125°C. However, the IC's performance and reliability may degrade at high temperatures. It's recommended to derate the IC's performance and consider using a heat sink or a thermally-enhanced package if operating in high-temperature environments.
  • The output voltage of the LTC1733EMSE can be calculated using the formula: Vout = 1.25V x (1 + R2/R1), where R1 and R2 are the resistors in the feedback network.
