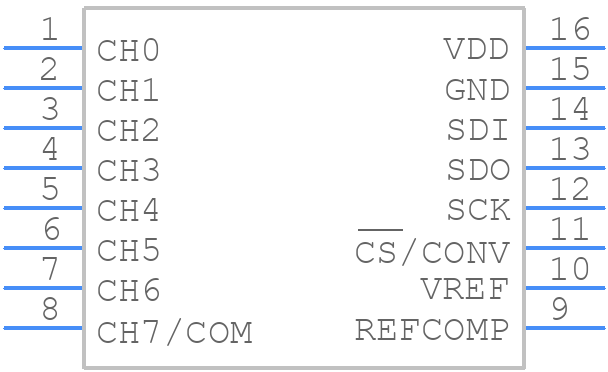

LTC1863CGN#PBF - Analog Devices

LTC1863CGN#PBF Details

• Manufacturer Part Number:

  LTC1863CGN#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SSOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  05-08-1641 (GN16)

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Input Voltage-Max:

  2.048 V

• Analog Input Voltage-Min:

  -2.048 V

• Conversion Time-Max:

  3.5 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  4.89 mm

• Linearity Error-Max (EL):

  0.0244%

• Moisture Sensitivity Level:

  1

• Number of Analog In Channels:

  8

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  BINARY, 2S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.2 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1.75 mm

• Supply Current-Max:

  1.8 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.899 mm
