LTC1863LIGN#WTRPBF - Analog Devices

Description: Micropower, 3V, 12-bit, 8-Channel 175ksps ADCs

Download LTC1863LIGN#WTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

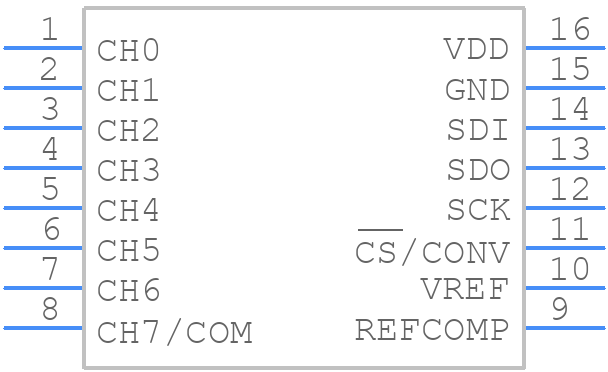

LTC1863LIGN#WTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1863LIGN#WTRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC1863LIGN#WTRPBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC1863LIGN#WTRPBF Details

  • Manufacturer Part Number:

    LTC1863LIGN#WTRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    1.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Conversion Time-Max:

    3.7 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.175 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC1863LIGN#WTRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1863 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, the layout should minimize noise coupling and ensure good thermal dissipation.
  • The input and output capacitors should be selected based on the specific application requirements, such as the input voltage range, output current, and desired ripple voltage. A good starting point is to use low-ESR capacitors with a value of 10uF to 22uF for the input and output capacitors.
  • The LTC1863 is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and the device's power dissipation. It's essential to ensure that the device is operated within its recommended temperature range to ensure reliability and performance.
  • The LTC1863 has a specific power-up and power-down sequence that should be followed to ensure proper operation. The device should be powered up by applying the input voltage to the VIN pin, followed by the enable signal to the EN pin. During power-down, the enable signal should be removed before the input voltage is removed.
  • The recommended input voltage range for the LTC1863 is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V and as high as 6V. However, the device's performance and efficiency may be affected at input voltages outside the recommended range.
