LTC1864ACMS8#PBF - Analog Devices

Description: Linear Technology LTC1864ACMS8#PBF, 16 bit Serial ADC, Voltage Input, 8-Pin MSOP

Download LTC1864ACMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

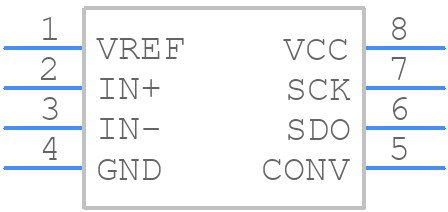

Symbol
LTC1864ACMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1864ACMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8
click to zoom
3D Models
LTC1864ACMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8
click to zoom

LTC1864ACMS8#PBF Details

  • Manufacturer Part Number:

    LTC1864ACMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    3.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0092%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1864ACMS8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1864ACMS8#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure proper calibration, the LTC1864ACMS8#PBF requires a calibration cycle during power-up. This involves applying a known voltage to the input pins and allowing the device to self-calibrate. The calibration cycle can be initiated by asserting the CAL pin low for at least 100ns.
  • The maximum sampling rate of the LTC1864ACMS8#PBF is 250ksps. As the sampling rate increases, the power consumption also increases. To minimize power consumption, it's recommended to use the lowest sampling rate necessary for the application.
  • The LTC1864ACMS8#PBF has built-in overvoltage and undervoltage protection. However, it's recommended to use external voltage protection devices, such as TVS diodes, to protect the device from voltage transients and surges.
  • The recommended power supply decoupling for the LTC1864ACMS8#PBF involves using a combination of ceramic and electrolytic capacitors. A 10uF ceramic capacitor should be placed close to the device, and a 10uF electrolytic capacitor should be placed near the power supply.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1864ACMS8#PBF Overview

Use the download button to access the LTC1864ACMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC18, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
