LTC1867LIGN#WPBF - Analog Devices

Description: Micropower, 3V, 16-Bit, 8-Channel 175ksps ADCs

Download LTC1867LIGN#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

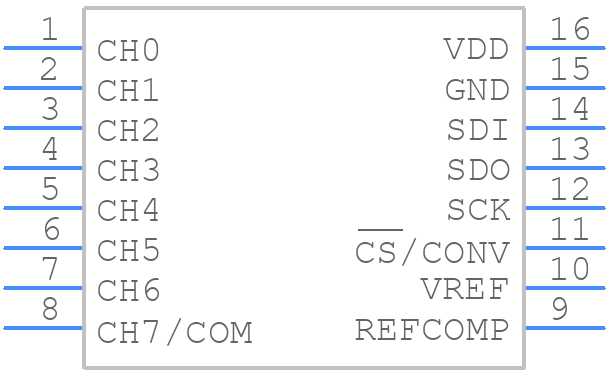

Symbol
LTC1867LIGN#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1867LIGN#WPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package
click to zoom
3D Models
LTC1867LIGN#WPBF - Analog Devices - 3D model - Small Outline Packages - GN Package
click to zoom

LTC1867LIGN#WPBF Details

  • Manufacturer Part Number:

    LTC1867LIGN#WPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    1.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Conversion Time-Max:

    3.7 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.175 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC1867LIGN#WPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1867LIGN#WPBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals near the analog inputs.
  • To ensure the accuracy of the ADC conversion results, it's essential to follow proper PCB layout and design guidelines, use a low-noise power supply, and minimize digital noise coupling. Additionally, using a high-quality analog input filter and ensuring the input signal is within the specified range can also improve accuracy.
  • The maximum sampling rate of the LTC1867LIGN#WPBF is 1.5Msps, and it can be achieved by using the device's internal clock or an external clock source. The power consumption of the device increases with the sampling rate, so it's essential to consider the trade-off between sampling rate and power consumption in the system design.
  • The LTC1867LIGN#WPBF can be interfaced with a microcontroller or FPGA using the SPI or I2C communication protocols. The recommended protocol depends on the specific system requirements, but SPI is generally faster and more suitable for high-speed applications. The device's datasheet provides detailed information on the communication protocols and interface requirements.
  • The LTC1867LIGN#WPBF has a maximum junction temperature of 125°C, and it's essential to ensure that the device operates within the specified temperature range to maintain reliability. Proper thermal management involves using a heat sink, ensuring good airflow, and minimizing power dissipation in the device.
