LTC1966MPMS8#TRPBF - Analog Devices

Description: Power Management Specialized - PMIC MP Version: Prec. Micropower RMS to DC converter

Download LTC1966MPMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

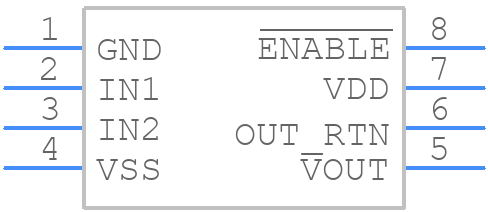

Symbol
LTC1966MPMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1966MPMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead
click to zoom
3D Models
LTC1966MPMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead
click to zoom

LTC1966MPMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC1966MPMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    RMS TO DC CONVERTER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.15%

  • Moisture Sensitivity Level:

    1

  • Negative Input Voltage-Max:

    -5.5 V

  • Negative Supply Voltage-Max:

    -5.5 V

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    0.8 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    5.5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1966MPMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1966MPMS8#TRPBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, keep the input and output traces short and away from each other to minimize noise coupling.
  • To ensure accurate temperature measurement, make sure to follow proper thermal design practices, such as using a thermally conductive material for the PCB, keeping the device away from heat sources, and using a thermocouple or thermistor with a high accuracy rating. Additionally, calibrate the device according to the datasheet recommendations and use the internal temperature sensor calibration feature.
  • The maximum allowed voltage on the input pins of the LTC1966MPMS8#TRPBF is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device. It's recommended to use input protection diodes or resistors to limit the input voltage to within the specified range.
  • To handle EMI and RFI in your design, use proper shielding and grounding techniques, such as using a metal enclosure, shielding the PCB with a conductive material, and connecting the analog and digital grounds to a single point. Additionally, use EMI filters or ferrite beads on the input and output lines to reduce noise coupling.
  • The recommended power-up sequence for the LTC1966MPMS8#TRPBF is to apply the power supply voltage (VCC) first, followed by the input voltage (VIN). This ensures that the internal voltage regulators are powered up correctly and reduces the risk of latch-up or damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1966MPMS8#TRPBF Overview

Use the download button to access the LTC1966MPMS8#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC19, or try a keyword search, such as Analog Special Function Converters
