LTC2225IUH#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 12-bit, 10Msps Low Power ADC

Download LTC2225IUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

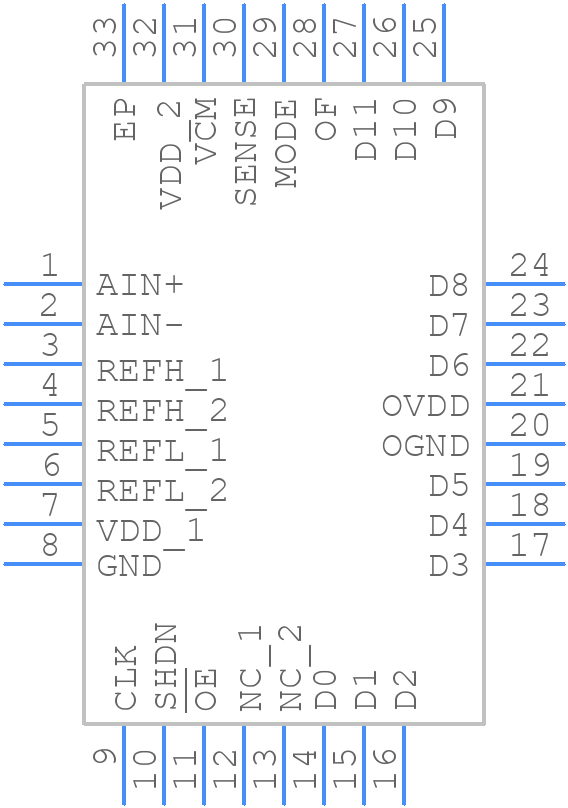

Symbol
LTC2225IUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2225IUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC2225IUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC2225IUH#PBF Details

  • Manufacturer Part Number:

    LTC2225IUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0269%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2225IUH#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2225IUH involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF capacitance is recommended at the output.
  • The maximum ambient temperature range for the LTC2225IUH is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the LTC2225IUH is available in a variety of grades, including a high-reliability version (LTC2225IUH#PBF-H) that meets the requirements of the aerospace industry. However, it's essential to consult with Analog Devices Inc. for specific requirements and certification.
  • To troubleshoot issues with the LTC2225IUH, start by checking the input and output voltages, as well as the current consumption. Verify that the component values and PCB layout meet the recommended guidelines. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. for support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2225IUH#PBF Overview

Use the download button to access the LTC2225IUH#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC22, or try a keyword search, such as Analog to Digital Converters
