LTC2247CUH#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2247CUH#PBF - Analogue to Digital Converter, 14 bit, 40 MSPS, Differential, Single Ended, Parallel, Single, 2.7 V

Download LTC2247CUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

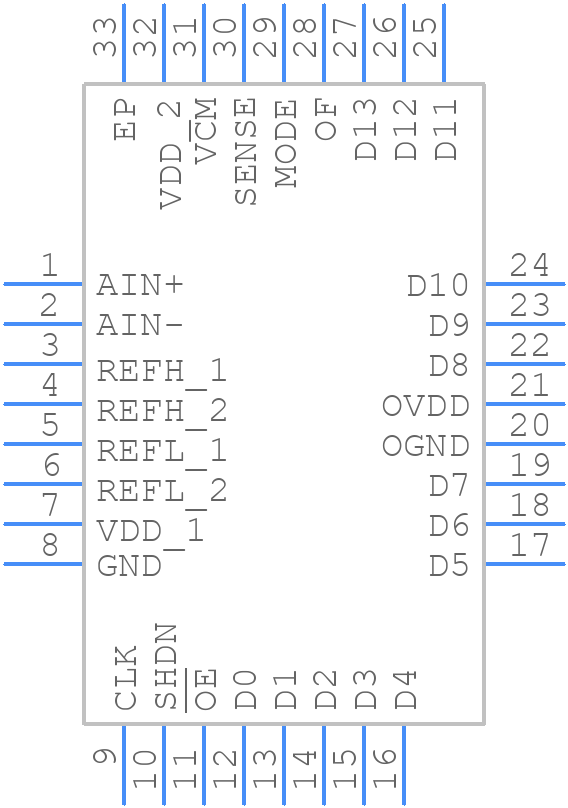

LTC2247CUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2247CUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 QFN UH Package
click to zoom
3D Models
LTC2247CUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 32 QFN UH Package
click to zoom

LTC2247CUH#PBF Details

  • Manufacturer Part Number:

    LTC2247CUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.9 V

  • Analog Input Voltage-Min:

    1 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2247CUH#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2247CUH involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the ADC near the analog signal sources and to use a low-impedance power supply.
  • To ensure accurate timing and synchronization, it's essential to use a stable clock source, such as a crystal oscillator, and to synchronize the ADC's clock with the system clock. Additionally, consider using a clock jitter cleaner or a phase-locked loop (PLL) to reduce clock jitter and ensure accurate timing.
  • When selecting an external reference voltage for the LTC2247CUH, consider the voltage range, accuracy, and noise tolerance. Choose a reference voltage that is within the ADC's specified range (2.5V to 5.5V) and has low noise and drift. Additionally, ensure the reference voltage is well-regulated and has a low output impedance.
  • To optimize the power supply design, use a low-noise, low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR). Add decoupling capacitors close to the ADC's power pins, and consider using a pi-filter or a ferrite bead to reduce high-frequency noise. Ensure the power supply voltage is within the specified range (2.7V to 3.6V) and has a low ripple.
  • When selecting an analog input filter for the LTC2247CUH, consider the filter's cutoff frequency, attenuation, and phase response. Choose a filter that rejects high-frequency noise and aliases, while preserving the signal bandwidth. Additionally, ensure the filter's output impedance is low enough to drive the ADC's input capacitance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2247CUH#PBF Overview

Use the download button to access the LTC2247CUH#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC22, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
