LTC2247IUH#PBF - Analog Devices

Description: 14-Bit, 40Msps Low Power 3V ADCs

Download LTC2247IUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

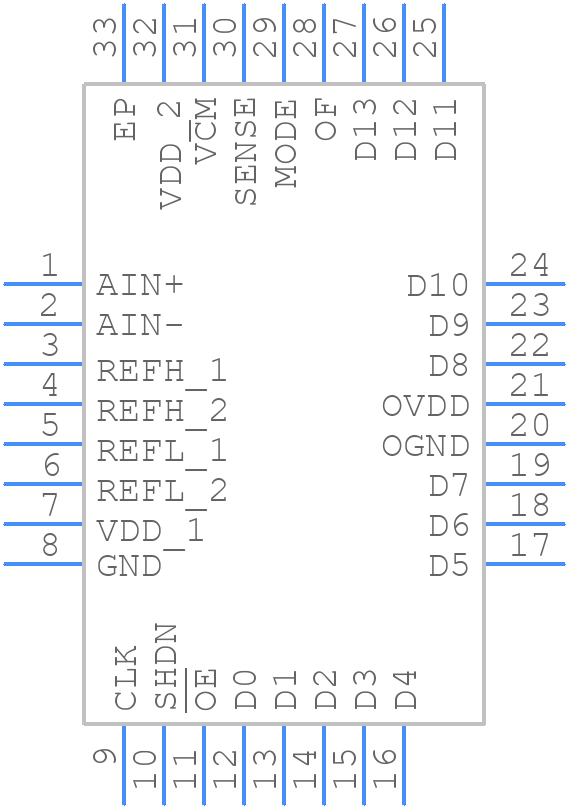

Symbol
LTC2247IUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2247IUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm · 5mm)_2026-1.21
click to zoom
3D Models
LTC2247IUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm · 5mm)_2026-1.21
click to zoom

LTC2247IUH#PBF Details

  • Manufacturer Part Number:

    LTC2247IUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    1.9 V

  • Analog Input Voltage-Min:

    1 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2247IUH#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2247IUH involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
  • The LTC2247IUH requires a single 1.8V to 3.3V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirement is to power up the VCC pin before the analog input signals.
  • The LTC2247IUH can handle clock frequencies up to 80 MSPS. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • To optimize the performance of the LTC2247IUH, it's recommended to use a high-quality clock source, minimize the noise on the analog input signals, and use a low-noise power supply. Additionally, optimizing the gain and offset settings, as well as using a suitable analog input filter, can also improve the SNR and THD.
  • The recommended operating temperature range for the LTC2247IUH is -40°C to 85°C. However, the device can operate at temperatures up to 125°C with reduced performance.
