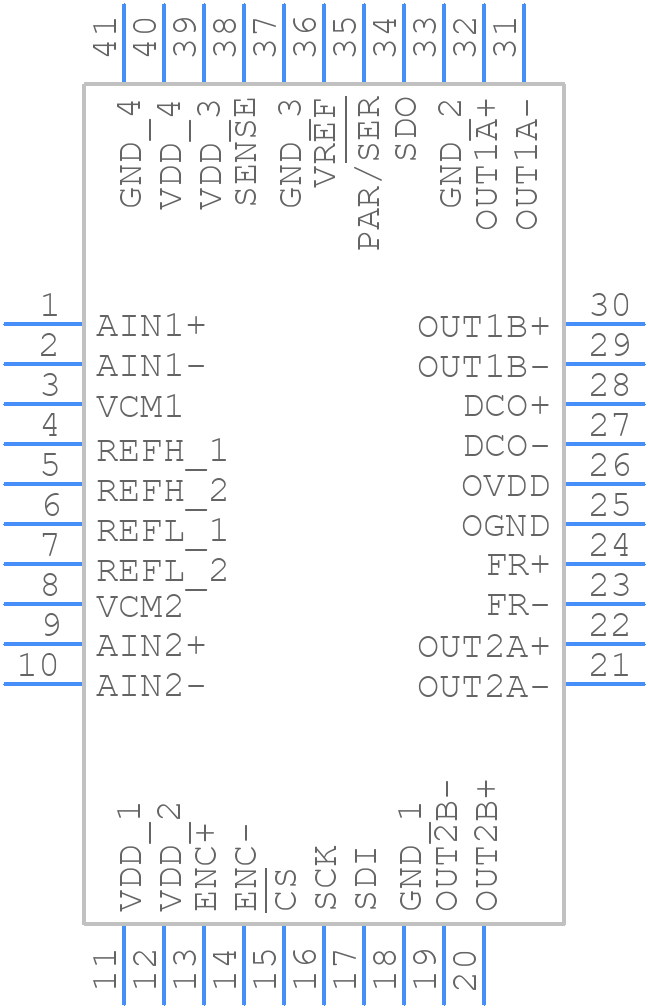

LTC2268CUJ-12#PBF - Analog Devices

LTC2268CUJ-12#PBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the LTC2268CUJ-12?
  A good PCB layout for the LTC2268CUJ-12 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the ADC and the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals near the analog signal paths.
• How do I ensure accurate timing and synchronization between multiple LTC2268CUJ-12 devices?
  To ensure accurate timing and synchronization between multiple LTC2268CUJ-12 devices, it's recommended to use a common clock source and to synchronize the devices using the SYNC pin. Additionally, the devices should be configured to use the same sampling rate and phase, and the clock signals should be buffered and distributed using a low-skew clock distribution network.
• What is the maximum allowed input voltage range for the LTC2268CUJ-12, and how do I protect the device from overvoltage conditions?
  The maximum allowed input voltage range for the LTC2268CUJ-12 is ±VREF, which is typically ±2.5V. To protect the device from overvoltage conditions, it's recommended to use external voltage limiting resistors or clamping diodes to limit the input voltage to within the allowed range. Additionally, the device has internal overvoltage protection, but it's still important to follow proper PCB design and layout practices to prevent voltage spikes and transients.
• How do I optimize the power consumption of the LTC2268CUJ-12, especially in low-power or battery-powered applications?
  To optimize the power consumption of the LTC2268CUJ-12, it's recommended to use the device's power-down mode, which reduces the power consumption to less than 1mA. Additionally, the device's clock frequency can be reduced to minimize power consumption, and the device can be operated at a lower supply voltage. Furthermore, using a low-power mode or shutdown mode during periods of inactivity can also help reduce power consumption.
• What is the recommended method for calibrating the LTC2268CUJ-12, and how often should it be calibrated?
  The recommended method for calibrating the LTC2268CUJ-12 involves using an external calibration signal and adjusting the device's offset and gain registers to achieve the desired accuracy. The frequency of calibration depends on the specific application and the desired level of accuracy, but it's typically recommended to calibrate the device during manufacturing or production testing, and then periodically during the device's operating life to ensure continued accuracy.
