LTC2311CMSE-16#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2311CMSE-16#PBF - Analogue to Digital Converter, SAR, 16 bit, 5 MSPS, Differential, SPI, Single, 3.13 V

Download LTC2311CMSE-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

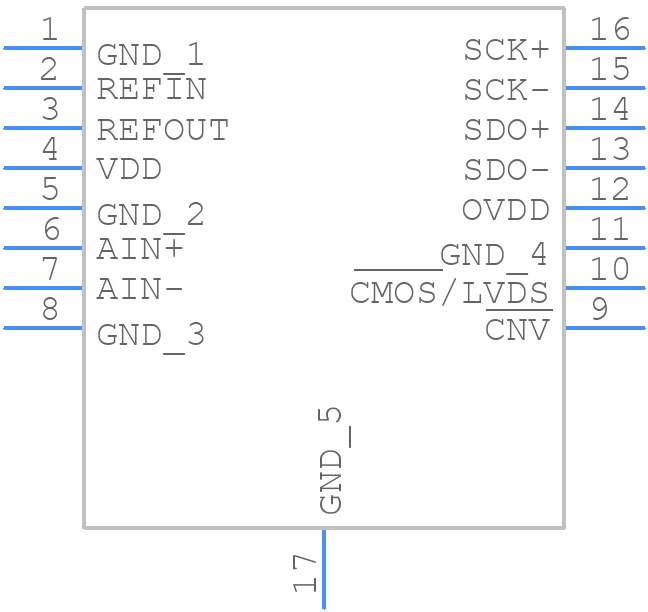

LTC2311CMSE-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2311CMSE-16#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC2311CMSE-16#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC2311CMSE-16#PBF Details

  • Manufacturer Part Number:

    LTC2311CMSE-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.054 V

  • Analog Input Voltage-Min:

    -2.042 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2311CMSE-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2311CMSE-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it is recommended to use a low-ESR capacitor for the VCC pin and to keep the clock input traces away from the analog input traces.
  • The LTC2311CMSE-16#PBF requires a calibration process to ensure accurate conversion results. This can be done by applying a known input voltage and adjusting the offset and gain registers accordingly. The datasheet provides a detailed calibration procedure, and it is recommended to follow it carefully to ensure optimal performance.
  • The maximum sampling rate of the LTC2311CMSE-16#PBF is 1.5Msps, and it can be achieved by setting the clock frequency to 30MHz. However, increasing the sampling rate also increases the power consumption, so it is recommended to optimize the sampling rate based on the specific application requirements.
  • The LTC2311CMSE-16#PBF has built-in overvoltage protection on the analog input pins, which can withstand up to 7V above the supply voltage. However, it is still recommended to use external protection circuitry, such as clamping diodes or voltage limiters, to prevent damage from excessive voltage transients.
  • The recommended power-up sequence for the LTC2311CMSE-16#PBF is to first apply the analog supply voltage (VCC), followed by the digital supply voltage (VDD), and then the clock signal. This ensures that the internal biasing and reference circuits are properly initialized before the device starts converting.
