LTC2311IMSE-14#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2311IMSE-14#PBF - Analogue to Digital Converter, SAR, 14 bit, 5 MSPS, Differential, SPI, Single, 3.13 V

Download LTC2311IMSE-14#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

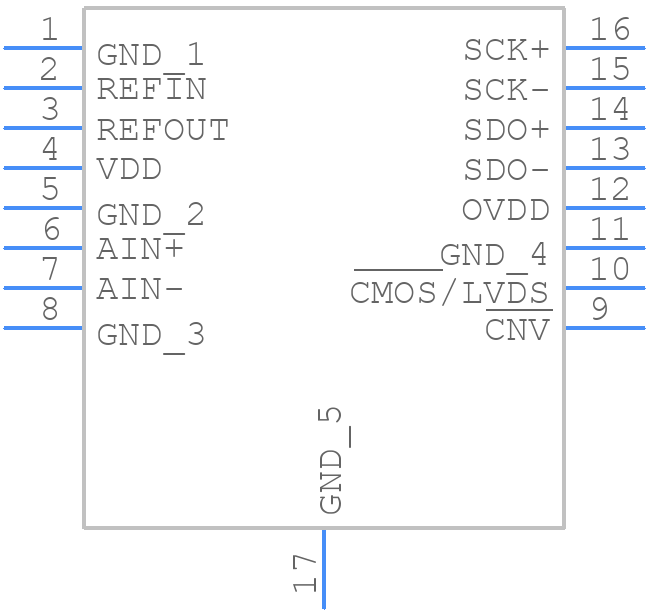

Symbol
LTC2311IMSE-14#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2311IMSE-14#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom
3D Models
LTC2311IMSE-14#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom

LTC2311IMSE-14#PBF Details

  • Manufacturer Part Number:

    LTC2311IMSE-14#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2311IMSE-14#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2311IMSE-14#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog input pins. Additionally, it is recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • The LTC2311IMSE-14#PBF does not require calibration, as it is a self-calibrating ADC. However, it is recommended to perform a system-level calibration to account for any errors introduced by the external circuitry. This can be done by applying a known input voltage and measuring the output code, and then adjusting the system-level gain and offset accordingly.
  • The maximum sampling rate of the LTC2311IMSE-14#PBF is 1.5Msps, but this can be limited by the external clock frequency and the settling time of the analog input signal. It is recommended to consult the datasheet and the application notes for more information on achieving the highest sampling rates.
  • The LTC2311IMSE-14#PBF can be interfaced with a microcontroller or FPGA using a serial interface, such as SPI or I2C. The ADC outputs a 14-bit digital code that can be read by the microcontroller or FPGA, and the interface can be configured using the control registers of the ADC.
  • The power consumption of the LTC2311IMSE-14#PBF is typically around 20mW, but this can be reduced by using the power-down mode, which reduces the power consumption to around 1uW. Additionally, the power consumption can be reduced by using a lower clock frequency and by optimizing the external circuitry.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2311IMSE-14#PBF Overview

Use the download button to access the LTC2311IMSE-14#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
