LTC2311IMSE-16#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2311IMSE-16#PBF - ADC, SAR, 16BIT, 5MSPS, MSOP-16

Download LTC2311IMSE-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

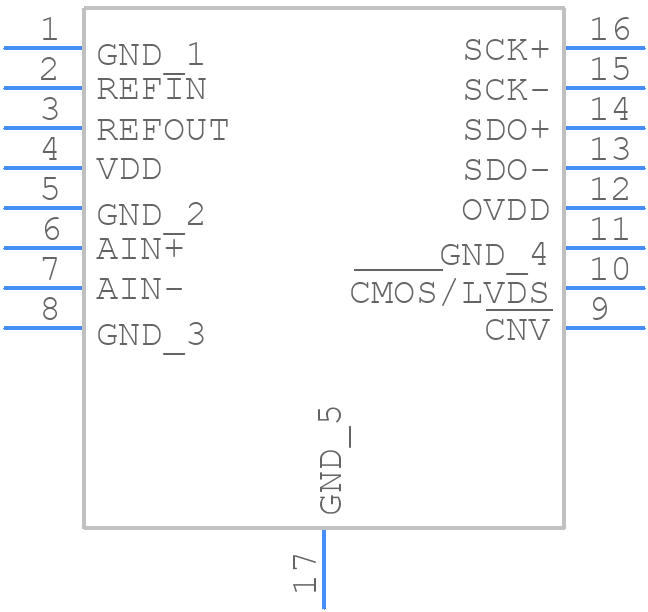

LTC2311IMSE-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2311IMSE-16#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom
3D Models
LTC2311IMSE-16#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom

LTC2311IMSE-16#PBF Details

  • Manufacturer Part Number:

    LTC2311IMSE-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.054 V

  • Analog Input Voltage-Min:

    -2.042 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2311IMSE-16#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The LTC2311IMSE-16#PBF requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated. The power sequencing requirement is to power up the VCC pin before the AVCC pin, and power down the AVCC pin before the VCC pin.
  • The LTC2311IMSE-16#PBF can support clock frequencies up to 100MHz, but the maximum frequency may vary depending on the specific application and layout.
  • To optimize performance, use a low-noise power supply, keep the signal traces short and away from noise sources, use a solid ground plane, and add decoupling capacitors close to the VCC and AVCC pins. Additionally, use a shielded cable for the analog input signals and keep the analog and digital grounds separate.
  • The recommended operating temperature range for the LTC2311IMSE-16#PBF is -40°C to 125°C, but the device can operate up to 150°C with reduced performance and reliability.
