LTC2320CUKG-14#PBF - Analog Devices

Description: Analog to Digital Converters - ADC Octal, 14-Bit, 1.5Msps/ch Simultaneous Sampling SAR ADC

Download LTC2320CUKG-14#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

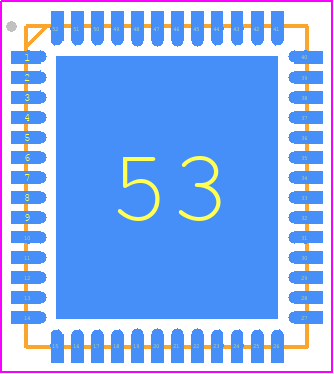

LTC2320CUKG-14#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 52-Lead Plastic QFN (7mm × 8mm)
click to zoom
3D Models
LTC2320CUKG-14#PBF - Analog Devices  - 3D model - Quad Flat No-Lead - 52-Lead Plastic QFN (7mm × 8mm)
click to zoom

LTC2320CUKG-14#PBF Details

  • Manufacturer Part Number:

    LTC2320CUKG-14#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    52

  • Manufacturer Package Code:

    05-08-1729

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.064 V

  • Analog Input Voltage-Min:

    -2.034 V

  • Conversion Time-Max:

    0.45 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PQCC-N52

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Sample Rate:

    1.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LTC2320CUKG-14#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2320 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, the datasheet provides a recommended layout and land pattern for the device.
  • To ensure accurate timing and synchronization, it is essential to use a stable clock source, such as a crystal oscillator or a high-quality clock generator. The LTC2320 has a clock input pin (CLKIN) that can be driven by an external clock source. Additionally, the device has a clock output pin (CLKOUT) that can be used to synchronize other devices in the system.
  • The maximum sampling rate of the LTC2320 is 1.5Msps (Mega Samples Per Second) per channel, with a maximum throughput of 3Msps in dual-channel mode. However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital output data rate.
  • The LTC2320 has built-in overvoltage protection (OVP) and undervoltage protection (UVP) on the analog input pins. However, it is still recommended to use external protection devices, such as voltage clamps or TVS diodes, to protect the device from excessive voltage transients or faults. Additionally, the datasheet provides guidelines for input voltage ranges and protection circuits.
  • The power consumption of the LTC2320 depends on the operating mode, clock frequency, and output data rate. The typical power consumption is around 35mW at 1.5Msps per channel. To minimize power consumption, it is recommended to use the lowest possible clock frequency, reduce the output data rate, and use the device's power-down mode when not in use.
