LTC2323CUFD-16#PBF - Analog Devices

Description: Dual, 16-Bit, 5Msps Differential Input ADC with Wide Input Common Mode Range

Download LTC2323CUFD-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

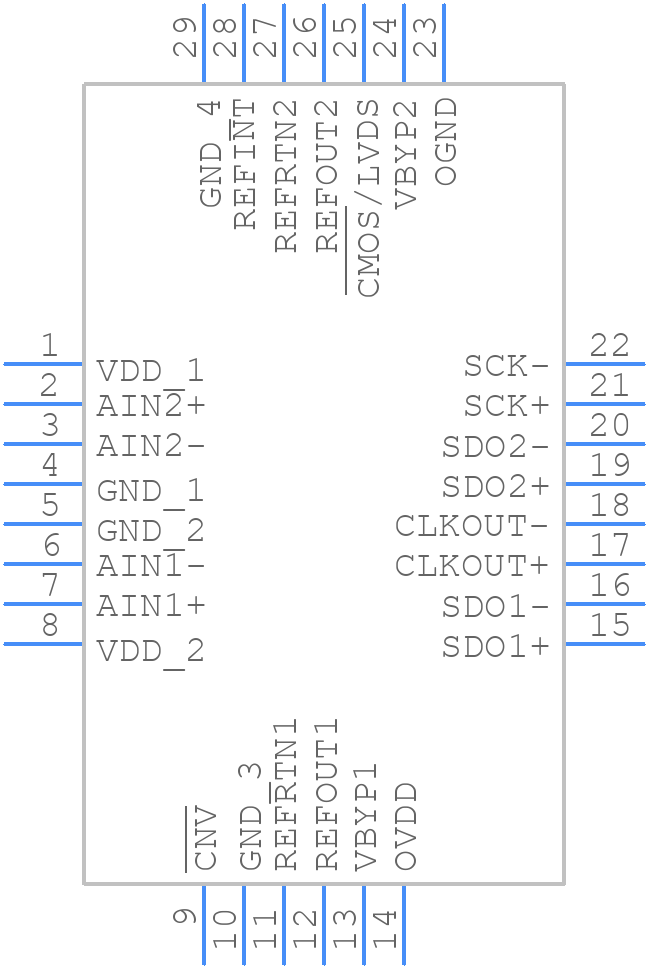

LTC2323CUFD-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2323CUFD-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm × 5mm) (Reference LTC DWG # 05-08-1712 Rev C)
click to zoom
3D Models
LTC2323CUFD-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm × 5mm) (Reference LTC DWG # 05-08-1712 Rev C)
click to zoom

LTC2323CUFD-16#PBF Details

  • Manufacturer Part Number:

    LTC2323CUFD-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.053 V

  • Analog Input Voltage-Min:

    -2.044 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC2323CUFD-16#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The LTC2323CUFD-16#PBF has an internal calibration circuit that is enabled by applying a voltage to the CAL pin. The calibration process is initiated by applying a voltage to the CAL pin and then releasing it. The device will then perform an internal calibration and store the results in its internal registers.
  • The maximum sampling rate of the LTC2323CUFD-16#PBF is 1.5Msps. The power consumption of the device increases with the sampling rate, so it's essential to consider the trade-off between sampling rate and power consumption in your design.
  • The LTC2323CUFD-16#PBF outputs 16-bit data in a twos-complement format. The output data can be handled by connecting the device to a microcontroller or FPGA, and then processing the data using software or firmware.
  • The recommended power-up sequence for the LTC2323CUFD-16#PBF is to apply the analog power supply (AVCC) before the digital power supply (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
