LTC2326CMS-18#PBF - Analog Devices

Description: 18-Bit, 250ksps, ±10.24V True Bipolar, Pseudo-Differential Input ADC with 95dB SNR –16.5V to 16.5V –40°C to 85°C

Download LTC2326CMS-18#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

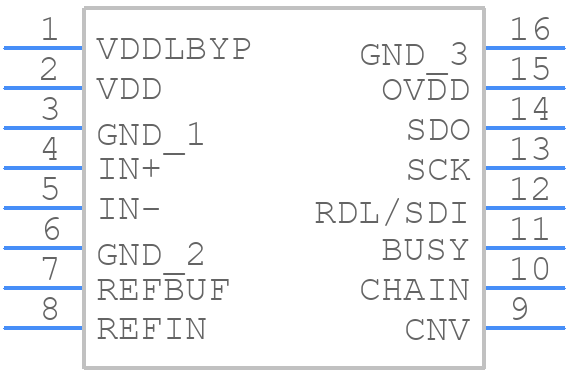

Symbol
LTC2326CMS-18#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2326CMS-18#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom
3D Models
LTC2326CMS-18#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom

LTC2326CMS-18#PBF Details

  • Manufacturer Part Number:

    LTC2326CMS-18#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10.2525 V

  • Analog Input Voltage-Min:

    -10.2275 V

  • Conversion Time-Max:

    3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0019%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    0.25 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    4.8 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2326CMS-18#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2326CMS-18#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog input pins. Additionally, it's recommended to use a low-impedance source for the analog input and to decouple the power supply pins with capacitors.
  • The LTC2326CMS-18#PBF has an internal calibration circuit that can be used to calibrate the ADC. The calibration process involves applying a known input voltage to the ADC and then using the CAL pin to initiate the calibration sequence. The device also has a built-in calibration register that can be used to store the calibration data.
  • The maximum sampling rate of the LTC2326CMS-18#PBF is 1.5Msps (Mega Samples Per Second) when using the internal clock, and up to 3Msps when using an external clock. However, the actual sampling rate may be limited by the system's bandwidth and the quality of the analog input signal.
  • The LTC2326CMS-18#PBF has a SPI-compatible serial interface that can be used to interface with a microcontroller or FPGA. The device requires a clock signal, a chip select signal, and data input/output lines to communicate with the host processor. The interface can be operated in either master or slave mode.
  • The power consumption of the LTC2326CMS-18#PBF is typically around 35mW when operating at 1.5Msps. The power consumption can be reduced by operating the device at a lower sampling rate, using the power-down mode, or by reducing the voltage supply. Additionally, the device has a shutdown pin that can be used to completely power down the device when not in use.
