LTC2326HMS-16#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 16-B, 250ksps, +/-10.24V True Bipolar, Ps

Download LTC2326HMS-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

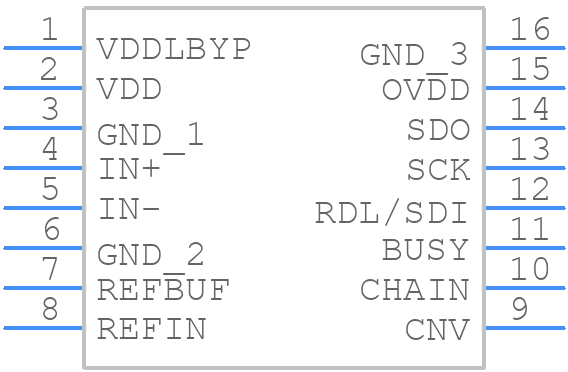

LTC2326HMS-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2326HMS-16#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead 1Plastic MSOP
click to zoom
3D Models
LTC2326HMS-16#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead 1Plastic MSOP
click to zoom

LTC2326HMS-16#PBF Details

  • Manufacturer Part Number:

    LTC2326HMS-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10.2525 V

  • Analog Input Voltage-Min:

    -10.2275 V

  • Conversion Time-Max:

    3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.25 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    11.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2326HMS-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2326HMS-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a low-impedance source for the analog input and to decouple the power supplies with capacitors.
  • To properly configure the SPI interface of the LTC2326HMS-16#PBF, you need to set the correct clock polarity and phase, and ensure that the microcontroller's SPI clock frequency is within the recommended range of 1MHz to 50MHz. You should also ensure that the microcontroller's SPI mode is set to Mode 0 or Mode 3, and that the CS pin is properly toggled to initiate and terminate data transfers.
  • The maximum sampling rate of the LTC2326HMS-16#PBF is 1.5Msps, and it can be achieved by setting the internal clock to its highest frequency. However, increasing the sampling rate also increases the power consumption, which can be up to 35mW at the maximum sampling rate. To reduce power consumption, you can lower the sampling rate or use the device's power-down mode.
  • The LTC2326HMS-16#PBF requires a two-point calibration to ensure accurate conversions. The recommended calibration procedure involves applying a known input voltage to the device and measuring the output code, then applying a second known input voltage and measuring the output code again. The gain and offset errors can then be calculated and corrected using the device's internal registers.
  • The LTC2326HMS-16#PBF has a maximum junction temperature of 150°C, and its performance can be affected by high temperatures. To ensure optimal performance, it's recommended to keep the device's temperature below 125°C, and to use a heat sink or thermal pad if the device is expected to operate in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2326HMS-16#PBF Overview

Use the download button to access the LTC2326HMS-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
