LTC2326IMS-18#PBF - Analog Devices

Description: 18-Bit, 250ksps, ±10.24V True Bipolar, Pseudo-Differential Input ADC with 95dB SNR

Download LTC2326IMS-18#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

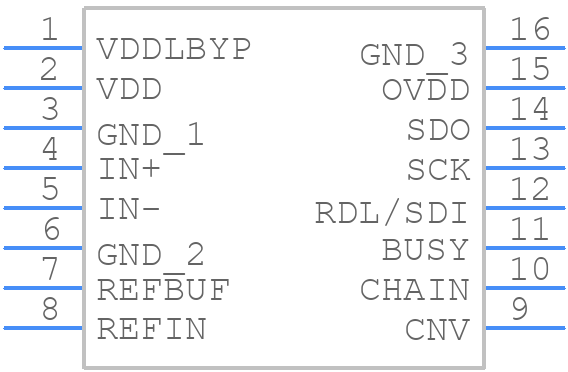

Symbol
LTC2326IMS-18#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2326IMS-18#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom
3D Models
LTC2326IMS-18#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom

LTC2326IMS-18#PBF Details

  • Manufacturer Part Number:

    LTC2326IMS-18#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10.2525 V

  • Analog Input Voltage-Min:

    -10.2275 V

  • Conversion Time-Max:

    3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0019%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    0.25 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    4.8 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2326IMS-18#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2326IMS-18#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog input pins. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • The LTC2326IMS-18#PBF has an internal calibration circuit that can be used to calibrate the ADC. The calibration process involves applying a known input voltage to the ADC and then using the CAL pin to initiate the calibration sequence. The calibration data is then stored in the ADC's internal registers and can be retrieved using the SPI interface.
  • The maximum sampling rate of the LTC2326IMS-18#PBF is 1.5Msps (Mega Samples Per Second) when using the internal clock, and up to 3Msps when using an external clock. However, the actual sampling rate may be limited by the system's noise floor, the quality of the analog input signal, and the performance of the external clock source.
  • The LTC2326IMS-18#PBF has a SPI-compatible interface that can be easily interfaced with most microcontrollers or FPGAs. The ADC's output data is available on the DOUT pin, and the microcontroller or FPGA can use the CS pin to select the ADC and the SCK pin to clock in the data. The ADC also has a RDY pin that can be used to indicate when the conversion is complete.
  • The power consumption of the LTC2326IMS-18#PBF is typically around 35mW when operating at 1.5Msps. To reduce the power consumption, the ADC can be put into a low-power standby mode by pulling the SHDN pin low. Additionally, the power consumption can be reduced by reducing the sampling rate, using a lower supply voltage, or using the ADC's internal clock instead of an external clock source.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2326IMS-18#PBF Overview

Use the download button to access the LTC2326IMS-18#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters
