LTC2348CLX-16#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2348CLX-16#PBF - ADC, 16BIT, OCTAL, 200KSPS, SPI, LQFP-48

Download LTC2348CLX-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

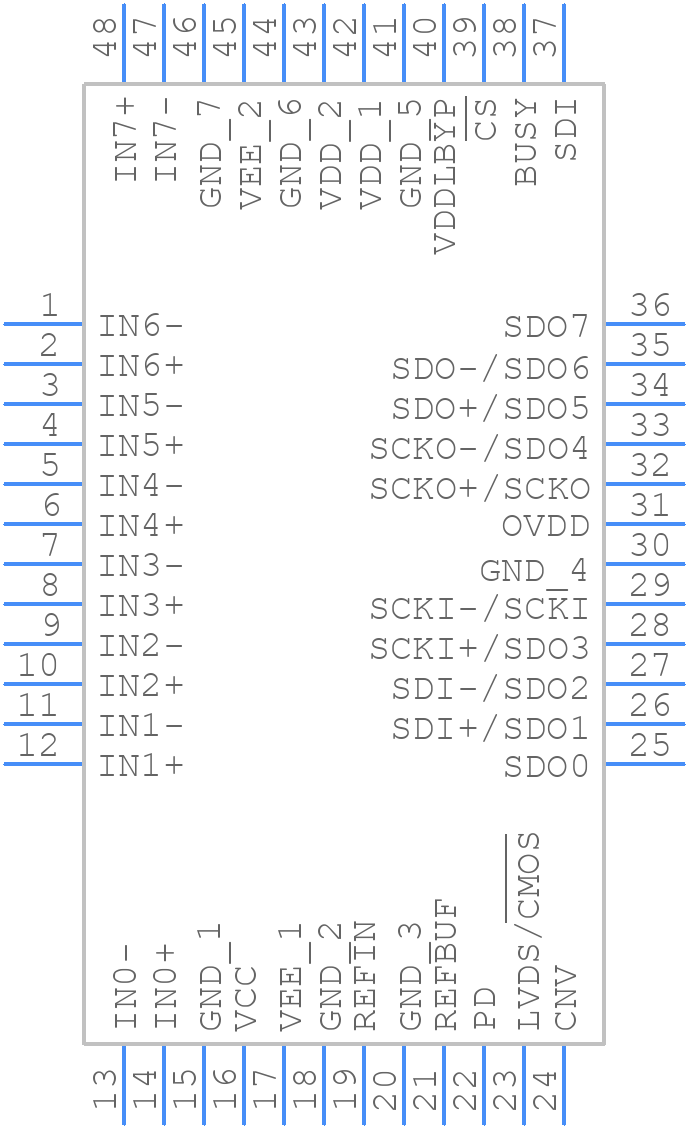

Symbol
LTC2348CLX-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2348CLX-16#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LTC2392CLX-16#PBF
click to zoom
3D Models
LTC2348CLX-16#PBF - Analog Devices - 3D model - Quad Flat Packages - LTC2392CLX-16#PBF
click to zoom

LTC2348CLX-16#PBF Details

  • Manufacturer Part Number:

    LTC2348CLX-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1760

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    0.285 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    3.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2348CLX-16#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2348CLX-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the ADC to the analog signal sources.
  • To ensure accurate temperature measurement with the internal temperature sensor, it's essential to follow proper PCB layout and thermal management practices. This includes keeping the ADC away from heat sources, using thermal vias to dissipate heat, and calibrating the temperature sensor during production.
  • The maximum sampling rate for the LTC2348CLX-16#PBF is 200ksps. As the sampling rate increases, power consumption also increases. To minimize power consumption, it's recommended to use the lowest sampling rate necessary for the application, and to use the ADC's power-down mode when not in use.
  • To handle EMI and RFI in your design, it's recommended to use proper shielding, filtering, and grounding techniques. This includes using a metal shield around the ADC, adding EMI filters to the analog signal lines, and using a common-mode choke to reduce radiated emissions.
  • The recommended input signal range for the LTC2348CLX-16#PBF is 0V to VREF (typically 2.5V or 5V). Operating outside of this range may result in reduced accuracy or performance. It's essential to ensure that the input signal is within the recommended range to achieve optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2348CLX-16#PBF Overview

Use the download button to access the LTC2348CLX-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
