LTC2353CLX-16#PBF - Analog Devices

Description: BUFFERED DUAL, 16-BIT, 550KSPS D

Download LTC2353CLX-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

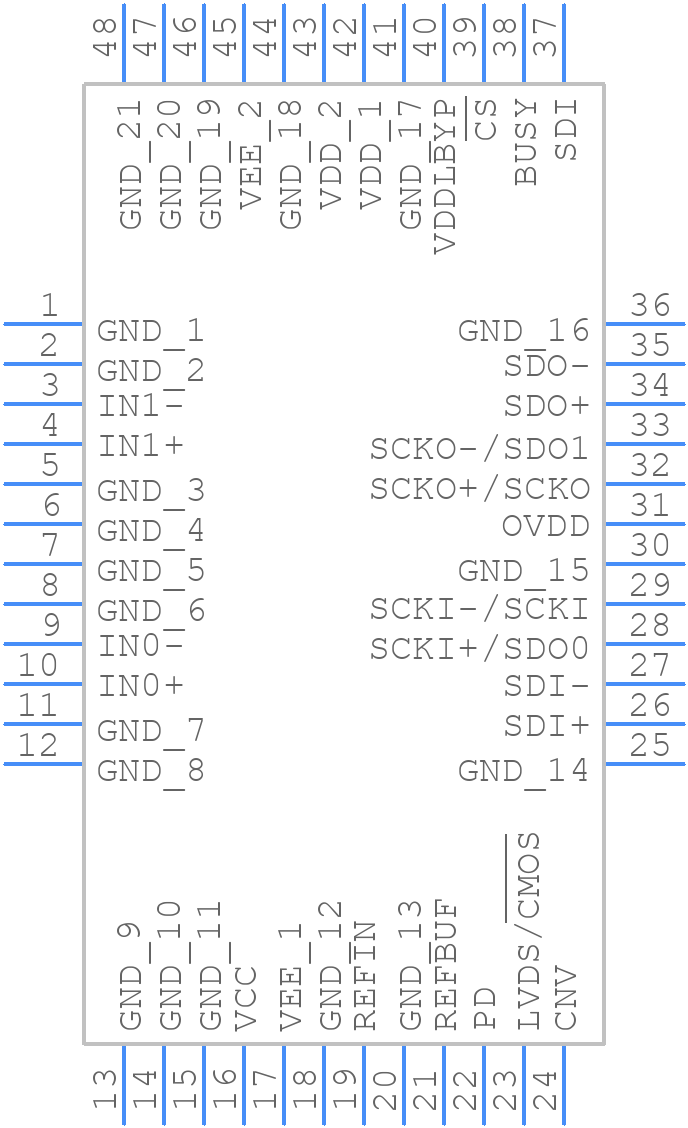

LTC2353CLX-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2353CLX-16#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead (7mm x 7mm) LQFP
click to zoom
3D Models
LTC2353CLX-16#PBF - Analog Devices - 3D model - Quad Flat Packages - 48-Lead (7mm x 7mm) LQFP
click to zoom

LTC2353CLX-16#PBF Details

  • Manufacturer Part Number:

    LTC2353CLX-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1760

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    10.2525 V

  • Analog Input Voltage-Min:

    -10.2275 V

  • Conversion Time-Max:

    1.1 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.55 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    5.9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LTC2353CLX-16#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the LTC2353CLX-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a low-impedance source for the analog input and to decouple the power supply pins with capacitors.
  • The LTC2353CLX-16#PBF has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then using the device's calibration registers to adjust the gain and offset to achieve the desired accuracy. The datasheet provides more details on the calibration procedure.
  • The maximum sampling rate of the LTC2353CLX-16#PBF is 1.5Msps (megasamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface used to communicate with the device.
  • Yes, the LTC2353CLX-16#PBF can be used in a multi-channel application. The device has a serial interface that allows multiple devices to be daisy-chained together, enabling the conversion of multiple analog input channels. However, the maximum number of channels that can be converted simultaneously depends on the system's clock frequency and the desired sampling rate.
  • The LTC2353CLX-16#PBF has internal overvoltage and undervoltage protection circuits that prevent damage to the device in case of input voltage exceeding the specified range. The device can withstand input voltages up to ±20V without damage, but the accuracy of the conversion may be affected if the input voltage exceeds the specified range.
