LTC2353CLX-18#PBF - Analog Devices

Description: Analog to Digital Converters - ADC Buffered Dual, 18-Bit, 550ksps Differential 10.24V Input SoftSpan ADC with Wide Input Common Mode Range

Download LTC2353CLX-18#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

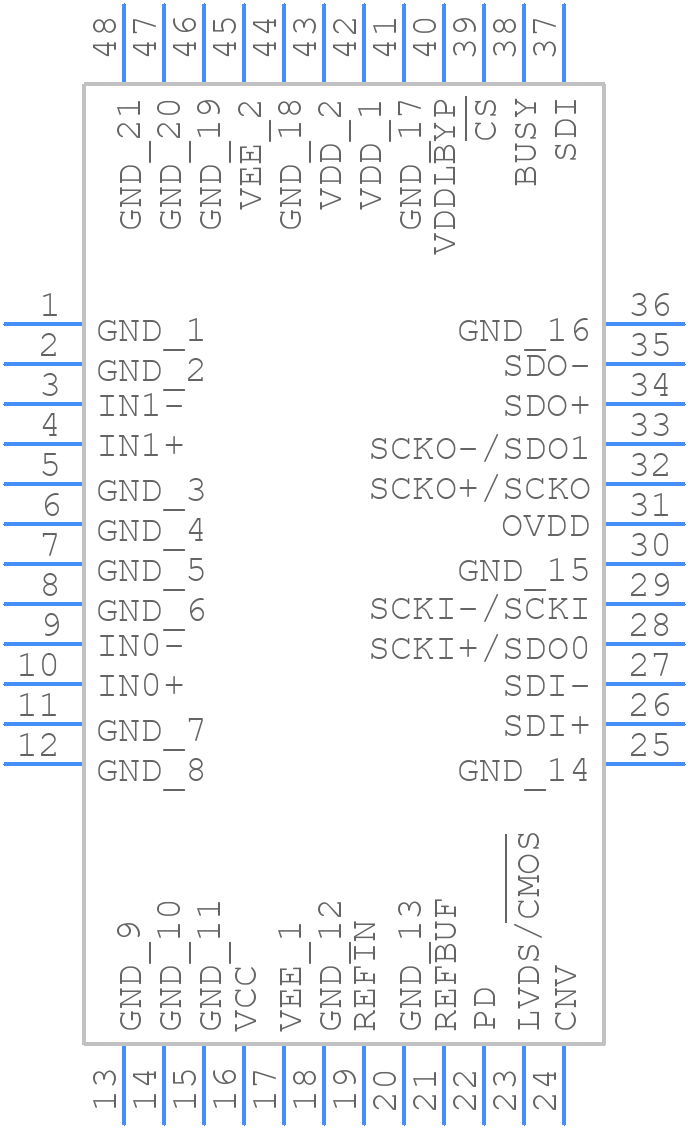

Symbol
LTC2353CLX-18#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2353CLX-18#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead (7mm × 7mm) Plastic LQFP
click to zoom
3D Models
LTC2353CLX-18#PBF - Analog Devices - 3D model - Quad Flat Packages - 48-Lead (7mm × 7mm) Plastic LQFP
click to zoom

LTC2353CLX-18#PBF Details

  • Manufacturer Part Number:

    LTC2353CLX-18#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1760

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    10.2525 V

  • Analog Input Voltage-Min:

    -10.2275 V

  • Conversion Time-Max:

    1.1 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.55 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    5.9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LTC2353CLX-18#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the LTC2353CLX-18#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a low-impedance source for the analog input and to decouple the power supply pins with capacitors.
  • The LTC2353CLX-18#PBF has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then using the device's calibration registers to adjust the gain and offset to achieve the desired accuracy. The datasheet provides more details on the calibration procedure.
  • The maximum sampling rate of the LTC2353CLX-18#PBF is 1.5Msps (megasamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface used.
  • Yes, the LTC2353CLX-18#PBF can be used in a multiplexed configuration. The device has a built-in multiplexer that allows multiple analog input channels to be connected to a single ADC. The multiplexer can be controlled using the device's digital interface.
  • The power consumption of the LTC2353CLX-18#PBF depends on the operating mode and the sampling rate. In normal operation, the device consumes around 35mW. To minimize power consumption, the device can be put into a low-power mode, and the sampling rate can be reduced. Additionally, the power supply voltage can be reduced to minimize power consumption.
