LTC2360HTS8#TRMPBF - Analog Devices

Description: Analog to Digital Converters - ADC 100ksps, 12-B Serial ADCs in TSOT-23

Download LTC2360HTS8#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

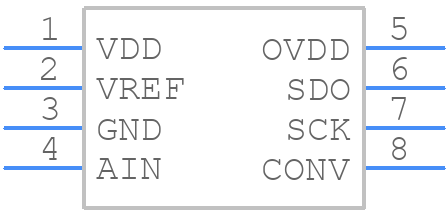

Symbol
LTC2360HTS8#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2360HTS8#TRMPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom
3D Models
LTC2360HTS8#TRMPBF - Analog Devices - 3D model - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom

LTC2360HTS8#TRMPBF Details

  • Manufacturer Part Number:

    LTC2360HTS8#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1637

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.7 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC2360HTS8#TRMPBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2360HTS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the LTC2360HTS8 in a noisy environment, it's recommended to use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the ADC away from high-frequency noise sources. Additionally, using a ferrite bead or a common-mode choke on the power supply lines can help to reduce noise.
  • The maximum sampling rate that can be achieved with the LTC2360HTS8 is 1.5Msps (megasamples per second) at 16-bit resolution. However, the sampling rate can be increased to 3Msps at 12-bit resolution or 6Msps at 10-bit resolution.
  • The LTC2360HTS8 does not require calibration for optimal performance. However, it's recommended to perform a system-level calibration to ensure that the ADC is operating within the desired specifications. This can be done by applying a known input signal and measuring the output code to determine the gain and offset errors.
  • The power consumption of the LTC2360HTS8 depends on the operating mode and the sampling rate. In normal mode, the power consumption is typically around 35mW at 1.5Msps. In nap mode, the power consumption is reduced to around 10mW, and in shutdown mode, the power consumption is less than 1mW.
