LTC2368CDE-16#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 16-B, 1Msps, Pseudo- Diff Unipolar SAR A

Download LTC2368CDE-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

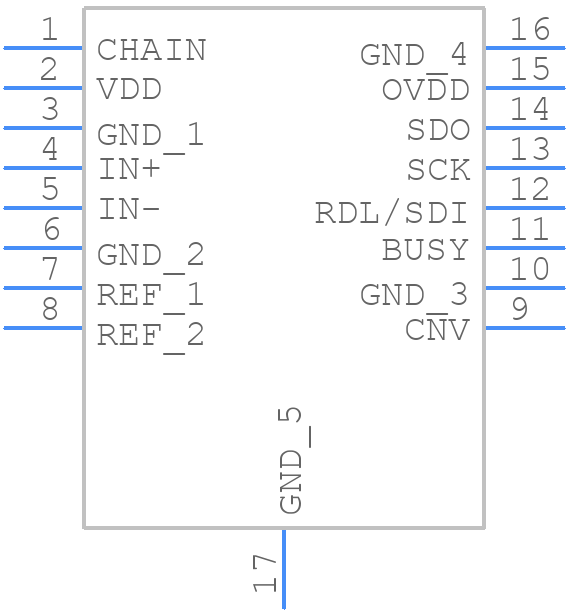

LTC2368CDE-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2368CDE-16#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LTC2368CDE-16#PBF - Analog Devices - 3D model - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom

LTC2368CDE-16#PBF Details

  • Manufacturer Part Number:

    LTC2368CDE-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1732

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.527 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0011%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2368CDE-16#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the LTC2368CDE-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources. Additionally, use short and direct traces for the analog input signals, and avoid running digital signals near the analog inputs.
  • The LTC2368CDE-16#PBF does not require calibration. It is a self-calibrating ADC that performs an internal calibration at power-up. However, it's essential to ensure that the device is properly powered, and the input signals are within the specified range to ensure optimal performance.
  • The maximum sampling rate of the LTC2368CDE-16#PBF is 1.5Msps. The power consumption of the device increases with the sampling rate. At 1.5Msps, the typical power consumption is around 35mW. However, the power consumption can be reduced by lowering the sampling rate or using the device's power-down mode.
  • Yes, the LTC2368CDE-16#PBF can be used in a multi-channel application. To synchronize the conversions, you can use the device's SYNC pin to trigger the conversions. The SYNC pin can be connected to a common clock source, allowing you to synchronize the conversions across multiple channels.
  • The recommended input signal range for the LTC2368CDE-16#PBF is 0V to VREF (typically 2.5V or 5V). The accuracy of the conversions is optimal when the input signal is within this range. If the input signal exceeds the recommended range, it may result in reduced accuracy or even damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2368CDE-16#PBF Overview

Use the download button to access the LTC2368CDE-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
