LTC2372CUH-16#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2372CUH-16#PBF - Analogue to Digital Converter, Octal, 16 bit, 500 kSPS

Download LTC2372CUH-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

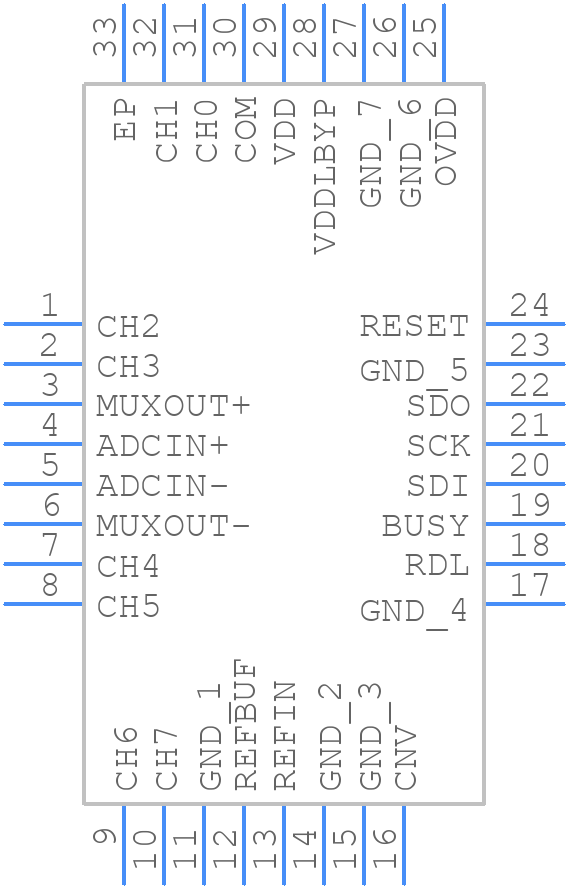

Symbol
LTC2372CUH-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2372CUH-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom
3D Models
LTC2372CUH-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom

LTC2372CUH-16#PBF Details

  • Manufacturer Part Number:

    LTC2372CUH-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4.104 V

  • Analog Input Voltage-Min:

    -4.088 V

  • Conversion Time-Max:

    1.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.5 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2372CUH-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2372CUH-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and away from digital signals.
  • The LTC2372CUH-16#PBF has a maximum junction temperature of 150°C. To handle thermal management, it's recommended to use a heat sink or a thermal pad, and to ensure good airflow around the device. Additionally, reducing the power consumption or using a lower-power version of the device can also help to minimize thermal issues.
  • The recommended input filtering for the LTC2372CUH-16#PBF involves using a low-pass filter with a cutoff frequency below the Nyquist frequency to remove high-frequency noise. For output filtering, a low-pass filter or a reconstruction filter can be used to remove aliasing and improve the signal quality.
  • The LTC2372CUH-16#PBF has an internal calibration circuit that can be used to calibrate the device. Additionally, external calibration can be performed using a precision voltage reference and a calibration routine. It's recommended to consult the datasheet and application notes for specific calibration procedures and guidelines.
  • Common pitfalls to avoid when designing with the LTC2372CUH-16#PBF include not following the recommended layout and placement guidelines, not using adequate input and output filtering, not providing a stable and low-noise power supply, and not properly calibrating the device. Additionally, not consulting the datasheet and application notes can also lead to design errors and performance issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2372CUH-16#PBF Overview

Use the download button to access the LTC2372CUH-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters
