LTC2373CUH-16#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2373CUH-16#PBF - Analogue to Digital Converter, Octal, 16 bit, 1 MSPS

Download LTC2373CUH-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

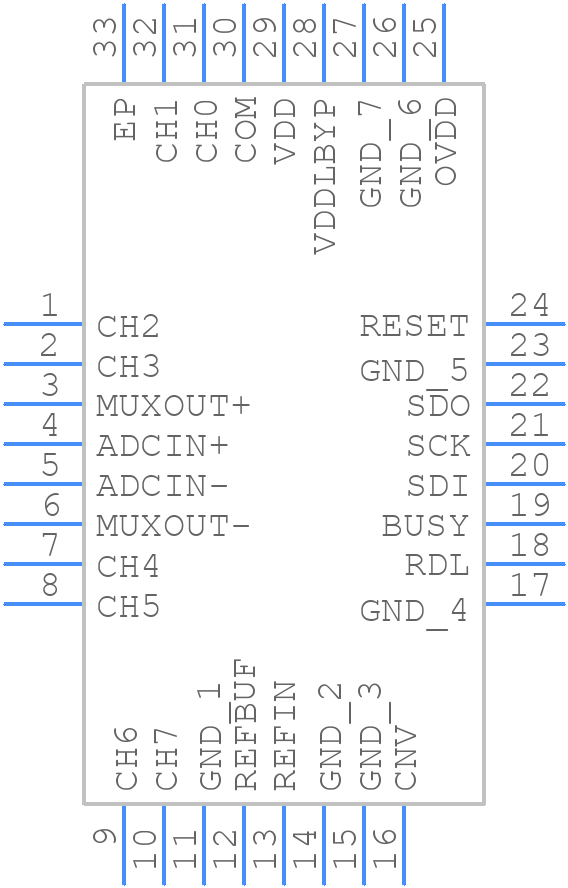

Symbol
LTC2373CUH-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2373CUH-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC2373CUH-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC2373CUH-16#PBF Details

  • Manufacturer Part Number:

    LTC2373CUH-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    0.527 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    11 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2373CUH-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2373CUH-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane. The datasheet provides a recommended layout and routing diagram, but it's also recommended to consult with Analog Devices' application notes and layout guidelines for more detailed information.
  • The LTC2373CUH-16#PBF does not require calibration, as it is a self-calibrating ADC. However, it's recommended to follow the recommended layout and routing guidelines, use a high-quality reference voltage, and ensure that the analog input signals are properly filtered and buffered to achieve the highest accuracy.
  • The maximum sampling rate of the LTC2373CUH-16#PBF is 1.6Msps (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input signal bandwidth, and the digital interface used to communicate with the ADC.
  • Yes, the LTC2373CUH-16#PBF can be used in a multi-channel application. The ADC has a serial digital interface that allows it to be easily connected to a microcontroller or FPGA, making it suitable for multi-channel applications. However, it's recommended to use a separate ADC for each channel to ensure that the analog input signals are not affected by crosstalk or other interference.
  • The power consumption of the LTC2373CUH-16#PBF is typically around 35mW at a sampling rate of 1.6Msps. To minimize power consumption, it's recommended to use a low-power mode, reduce the sampling rate, or use a power-down mode when the ADC is not in use. Additionally, using a low-power reference voltage and minimizing the analog input signal bandwidth can also help reduce power consumption.
