LTC2378IDE-16#TRPBF - Analog Devices

Description: IC ADC 16BIT SAR 16DFN

Download LTC2378IDE-16#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

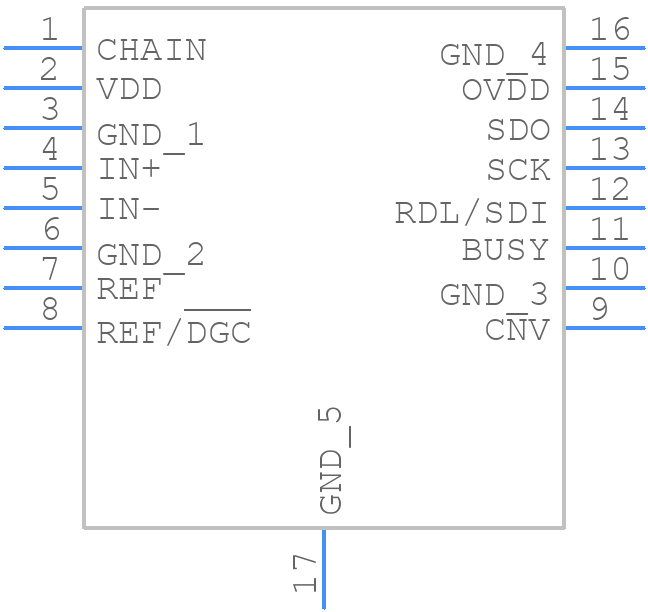

LTC2378IDE-16#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2378IDE-16#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 16-Lead (4mm × 3mm) Plastic DFN
click to zoom
3D Models
LTC2378IDE-16#TRPBF - Analog Devices - 3D model - Small Outline No-lead - 16-Lead (4mm × 3mm) Plastic DFN
click to zoom

LTC2378IDE-16#TRPBF Details

  • Manufacturer Part Number:

    LTC2378IDE-16#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 3 MM, LEAD FREE, PLASTIC, DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1732

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.15 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    0.525 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0008%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    6.3 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2378IDE-16#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2378IDE-16#TRPBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it is recommended to use a low-noise, low-impedance power supply and to decouple the power pins with capacitors.
  • To optimize the performance of the LTC2378IDE-16#TRPBF in high-frequency applications, it is recommended to use a low-jitter clock source, minimize the capacitive load on the output pins, and use a low-noise, low-impedance power supply. Additionally, the analog input signals should be properly filtered and buffered to reduce noise and distortion.
  • The maximum sampling rate that can be achieved with the LTC2378IDE-16#TRPBF is 1.5Msps (megasamples per second) for a single channel, and 750ksps for multiple channels. However, the actual sampling rate may be limited by the system's clock frequency, the analog input signal bandwidth, and the digital interface speed.
  • The digital output data from the LTC2378IDE-16#TRPBF is provided in a 16-bit parallel format, with the most significant bit (MSB) first. The data can be read using a microcontroller or an FPGA, and can be processed and analyzed using software or firmware. It is recommended to use a first-in-first-out (FIFO) buffer to handle the data and ensure that it is not lost or corrupted.
  • The power consumption of the LTC2378IDE-16#TRPBF is typically around 35mW at a supply voltage of 3.3V and a sampling rate of 1.5Msps. The power consumption can be minimized by reducing the sampling rate, using a lower supply voltage, and disabling the internal reference and clock circuits when not in use.
