LTC2380IMS-16#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 16-Bit, 2Msps, 96dB SNR, Low Power SAR ADC with Serial Interface

Download LTC2380IMS-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

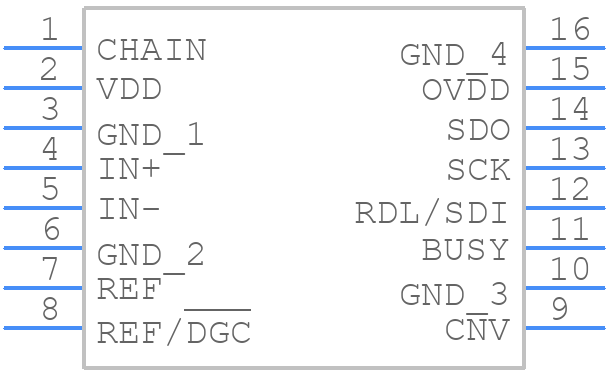

Symbol
LTC2380IMS-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2380IMS-16#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Lead Plastic MSOP_1
click to zoom
3D Models
LTC2380IMS-16#PBF - Analog Devices - 3D model - Small Outline Packages - 16 Lead Plastic MSOP_1
click to zoom

LTC2380IMS-16#PBF Details

  • Manufacturer Part Number:

    LTC2380IMS-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4.176 V

  • Analog Input Voltage-Min:

    -4.016 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0006%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2380IMS-16#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the REFIN pin.
  • To ensure accuracy, use a high-quality clock source, ensure the input signal is properly filtered and buffered, and use the internal reference voltage. Also, consider using the ADC's built-in calibration feature and averaging multiple conversions to reduce noise.
  • The maximum sampling rate of the LTC2380IMS-16#PBF is 1.5Msps. However, the actual achievable sampling rate may be limited by the system's clock frequency, the input signal's bandwidth, and the ADC's settling time.
  • The LTC2380IMS-16#PBF outputs 16-bit parallel data. The output data is in two's complement format, with the most significant bit (MSB) first. The data is output on the D[15:0] pins, with D[15] being the MSB.
  • The typical power consumption of the LTC2380IMS-16#PBF is 35mW at 1.5Msps. To reduce power consumption, consider using the ADC's power-down mode, reducing the clock frequency, and optimizing the system's power supply voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2380IMS-16#PBF Overview

Use the download button to access the LTC2380IMS-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
