LTC2386CUH-16#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2386CUH-16#PBF - Analogue to Digital Converter, SAR, 1-CH, 16 bit, 10 MSPS, Differential, Serial, Single, 4.75 V

Download LTC2386CUH-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

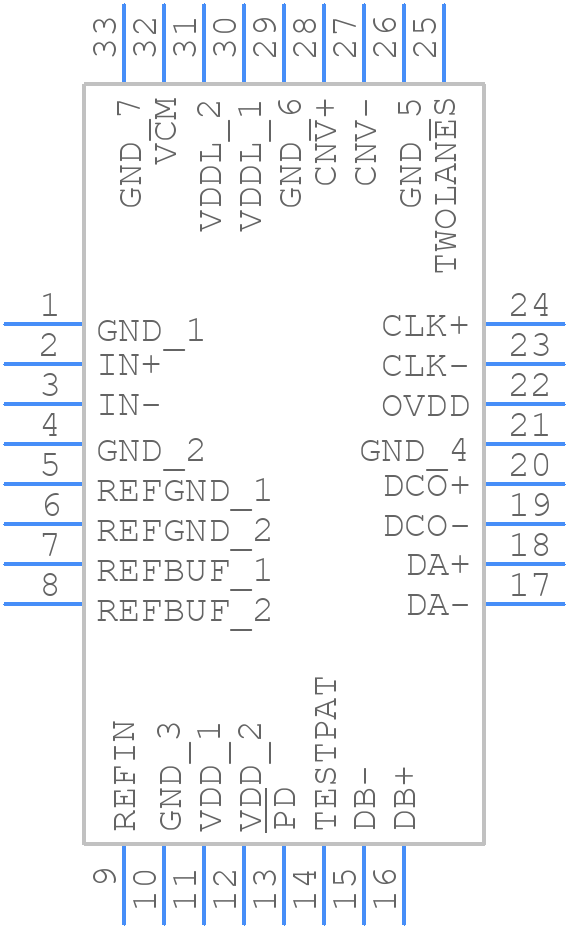

Symbol
LTC2386CUH-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2386CUH-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom
3D Models
LTC2386CUH-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom

LTC2386CUH-16#PBF Details

  • Manufacturer Part Number:

    LTC2386CUH-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4.102 V

  • Analog Input Voltage-Min:

    -4.09 V

  • Conversion Time-Max:

    0.078 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0008%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    10 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2386CUH-16#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the REFIN pin.
  • To optimize performance in a high-frequency application, use a low-jitter clock source, minimize the length of the clock signal trace, and use a high-frequency capable capacitor for the VCC pin. Also, consider using a shielded enclosure to reduce electromagnetic interference.
  • The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (DVCC), and then the clock signal. This ensures that the internal bias circuits are properly initialized before the clock signal is applied.
  • To troubleshoot issues with the LTC2386CUH-16#PBF, start by verifying the power supply voltages, clock signal, and input signals. Check for noise or distortion on the input signals, and ensure that the device is properly terminated. Use an oscilloscope to verify the output signals and check for any signs of oscillation or instability.
  • The maximum operating temperature range for the LTC2386CUH-16#PBF is -40°C to 125°C. Operating the device outside of this range can affect its performance, including reduced accuracy, increased noise, and potential damage to the device.
