LTC2386CUH-18#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 18-Bit, 10Msps SAR ADC

Download LTC2386CUH-18#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

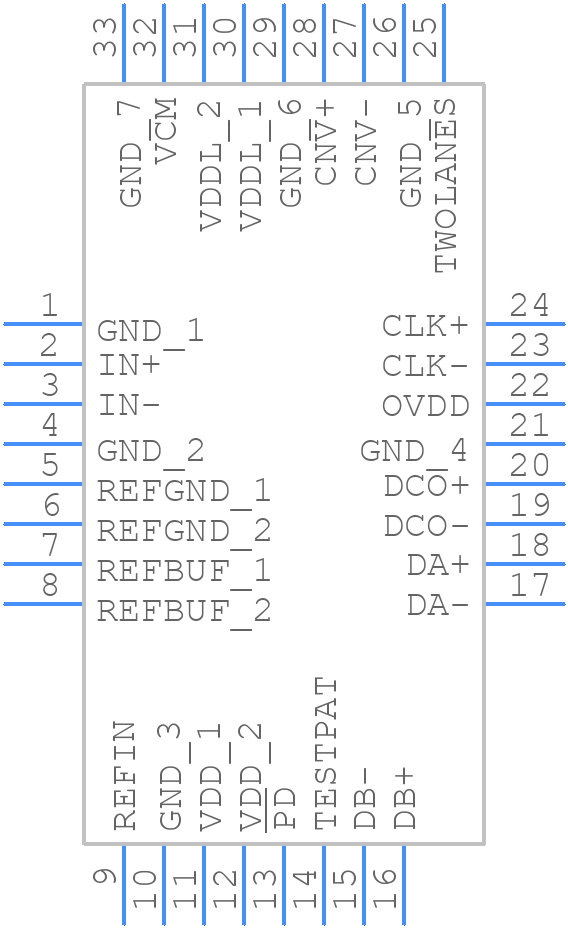

Symbol
LTC2386CUH-18#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2386CUH-18#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)_
click to zoom
3D Models
LTC2386CUH-18#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)_
click to zoom

LTC2386CUH-18#PBF Details

  • Manufacturer Part Number:

    LTC2386CUH-18#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4.102 V

  • Analog Input Voltage-Min:

    -4.09 V

  • Conversion Time-Max:

    0.078 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0007%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    10 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2386CUH-18#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2386CUH-18#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the clock input traces away from the analog input traces.
  • To optimize the performance of the LTC2386CUH-18#PBF in high-frequency applications, it's recommended to use a low-jitter clock source, minimize the input capacitance, and use a high-quality analog input filter. Additionally, the use of a low-ESR capacitor for the VCC pin and a solid ground plane can help to reduce noise and improve performance.
  • The maximum sampling rate that can be achieved with the LTC2386CUH-18#PBF is 18Msps (Mega Samples Per Second). However, the actual sampling rate may be limited by the system's clock frequency, input bandwidth, and other factors.
  • The LTC2386CUH-18#PBF can be interfaced with a microcontroller or FPGA using a parallel interface. The device provides a 16-bit parallel output data bus, and the interface can be synchronized using the CNV (convert) and SCK (clock) pins. The specific interface details may vary depending on the microcontroller or FPGA being used.
  • The power consumption of the LTC2386CUH-18#PBF is typically around 35mW at 18Msps. To minimize power consumption, it's recommended to use a low-power mode, reduce the clock frequency, and use a low-voltage power supply. Additionally, the use of a power-down mode can help to reduce power consumption when the device is not in use.
