LTC2412CGN#PBF - Analog Devices

Description: LTC2412CGN#PBF, 24 bit ADC Differential, Serial, 16-Pin SSOP N

Download LTC2412CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

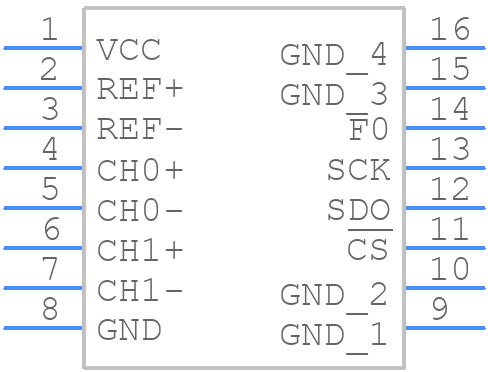

LTC2412CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2412CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN(DFN)_1
click to zoom
3D Models
LTC2412CGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN(DFN)_1
click to zoom

LTC2412CGN#PBF Details

  • Manufacturer Part Number:

    LTC2412CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.75 V

  • Analog Input Voltage-Min:

    -2.75 V

  • Conversion Time-Max:

    163440 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Linearity Error-Max (EL):

    0.0014%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2412CGN#PBF Frequently Asked Questions (FAQs)

  • The datasheet provides some guidelines, but it's recommended to follow Analog Devices' application note AN115, which provides detailed layout and placement guidelines for the LTC2412CGN#PBF. Additionally, it's essential to keep the analog and digital grounds separate, and to use a solid ground plane to minimize noise.
  • Accurate calibration of the LTC2412CGN#PBF requires careful attention to the calibration procedure outlined in the datasheet. Critical calibration parameters include the gain and offset calibration, which can be performed using the CAL pin. It's essential to follow the recommended calibration sequence and to use a high-accuracy voltage reference.
  • When selecting external components for the LTC2412CGN#PBF, it's essential to consider the component's tolerance, temperature coefficient, and parasitic effects. For example, the input resistors should have a low temperature coefficient and high accuracy, while the capacitors should have low equivalent series resistance (ESR) and high reliability.
  • To troubleshoot common issues with the LTC2412CGN#PBF, start by checking the power supply and ground connections, ensuring they are clean and well-filtered. Next, verify that the input signals are within the specified range and that the device is properly calibrated. If issues persist, check for noise sources, such as nearby switching regulators or digital circuits, and ensure that the layout and placement follow the recommended guidelines.
  • The LTC2412CGN#PBF has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow proper PCB design and layout guidelines. Additionally, ensure that the device is operated within the specified temperature range and that the power dissipation is within the recommended limits.
