LTC2415-1CGN#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 24-Bit ADC w/ 15Hz Output, 50/60Hz

Download LTC2415-1CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

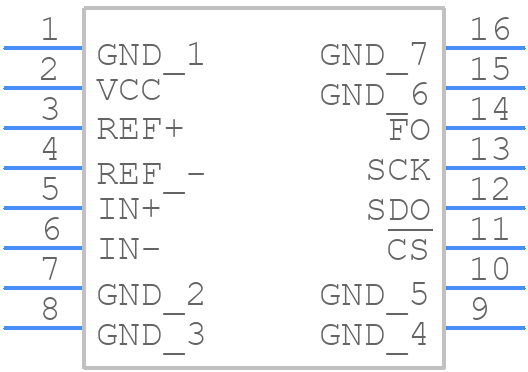

Symbol
LTC2415-1CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2415-1CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic SSOP
click to zoom
3D Models
LTC2415-1CGN#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic SSOP
click to zoom

LTC2415-1CGN#PBF Details

  • Manufacturer Part Number:

    LTC2415-1CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.75 V

  • Analog Input Voltage-Min:

    -2.75 V

  • Conversion Time-Max:

    74300 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Supply Current-Max:

    3.3 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2415-1CGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2415-1CGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the digital signals away from the analog signals.
  • To ensure accurate calibration of the LTC2415-1CGN#PBF, it is recommended to follow the calibration procedure outlined in the datasheet, using a high-accuracy voltage reference and a stable temperature environment. Additionally, it is important to ensure that the device is properly powered and that the input signals are within the specified range.
  • When selecting external components for the LTC2415-1CGN#PBF, key considerations include the type and value of resistors, capacitors, and inductors, as well as the quality and accuracy of the components. It is also important to consider the operating frequency, signal amplitude, and noise tolerance when selecting components.
  • To troubleshoot common issues with the LTC2415-1CGN#PBF, it is recommended to check the power supply, ground connections, and input signals for noise and distortion. Additionally, it is important to verify that the device is properly calibrated and that the external components are properly selected and connected. If issues persist, it may be necessary to consult the datasheet or contact Analog Devices Inc. for further support.
  • The LTC2415-1CGN#PBF has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device within a temperature range of -40°C to 125°C. Thermal management considerations include providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
