LTC2418IGN#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 24-bit, 8-channel Delta-Sigma ADC

Download LTC2418IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

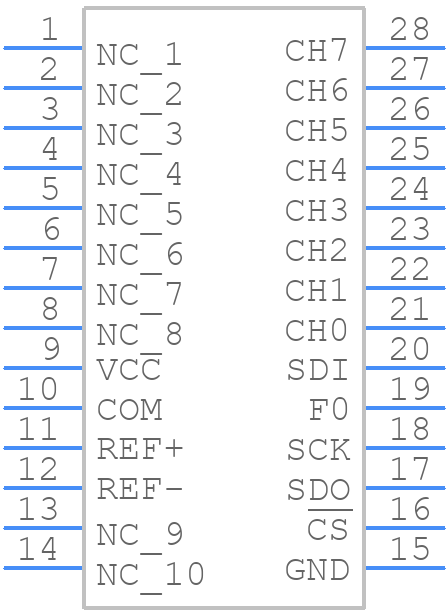

Symbol
LTC2418IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2418IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic SSOP
click to zoom
3D Models
LTC2418IGN#PBF - Analog Devices - 3D model - Small Outline Packages - 28-Lead Plastic SSOP
click to zoom

LTC2418IGN#PBF Details

  • Manufacturer Part Number:

    LTC2418IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1641 (GN28)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.75 V

  • Analog Input Voltage-Min:

    -2.75 V

  • Conversion Time-Max:

    163440 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.893 mm

  • Linearity Error-Max (EL):

    0.0014%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.748 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2418IGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2418IGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accurate calibration of the LTC2418IGN#PBF, it's recommended to use a high-accuracy voltage reference, such as the LTC6655-5, and to follow the calibration procedure outlined in the datasheet. Additionally, it's important to ensure that the device is operated within its specified temperature range and that the input signals are within the specified range.
  • The maximum sampling rate of the LTC2418IGN#PBF is 1.5Msps (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the input signal bandwidth, and the device's settling time.
  • The LTC2418IGN#PBF has built-in overvoltage and undervoltage protection, but it's still recommended to use external protection circuitry, such as voltage regulators and TVS diodes, to ensure that the device is protected from voltage transients and surges.
  • The recommended power-up sequence for the LTC2418IGN#PBF is to first apply the analog power supply (AVCC), followed by the digital power supply (DVCC), and then the clock signal. This ensures that the device is properly initialized and configured before starting the conversion process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2418IGN#PBF Overview

Use the download button to access the LTC2418IGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC24, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
