LTC2439-1IGN#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2439-1IGN#PBF - Analogue to Digital Converter, Octal, 16 bit, 6.9 SPS, Differential, Single Ended, SPI, Single

Download LTC2439-1IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

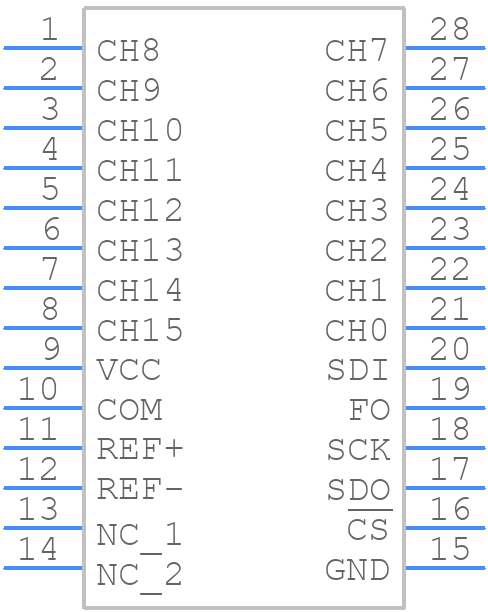

Symbol
LTC2439-1IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2439-1IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic SSOP 1
click to zoom
3D Models
LTC2439-1IGN#PBF - Analog Devices - 3D model - Small Outline Packages - 28-Lead Plastic SSOP 1
click to zoom

LTC2439-1IGN#PBF Details

  • Manufacturer Part Number:

    LTC2439-1IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1641 (GN28)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.75 V

  • Analog Input Voltage-Min:

    -2.75 V

  • Conversion Time-Max:

    149600 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.893 mm

  • Linearity Error-Max (EL):

    0.0019%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.748 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2439-1IGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2439-1IGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the digital signals away from the analog signals.
  • To ensure accurate temperature measurement with the LTC2439-1IGN#PBF, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients. Additionally, the device should be placed close to the temperature sensor, and the PCB should be designed to minimize thermal resistance.
  • The maximum allowed voltage on the analog input pins of the LTC2439-1IGN#PBF is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device.
  • The digital output data from the LTC2439-1IGN#PBF is in a 24-bit twos-complement format. To handle the data, you need to use a microcontroller or a digital signal processor to read the data, perform any necessary scaling or offset adjustments, and then use the data as required by your application.
  • The recommended power-up sequence for the LTC2439-1IGN#PBF is to first apply the analog supply voltage (VCC) and then the digital supply voltage (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2439-1IGN#PBF Overview

Use the download button to access the LTC2439-1IGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC24, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
