LTC2481CDD#PBF - Analog Devices

Description: Single Channel Single ADC Delta-Sigma 7.5sps 16-bit Serial Automotive 10-Pin DFN EP

Download LTC2481CDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

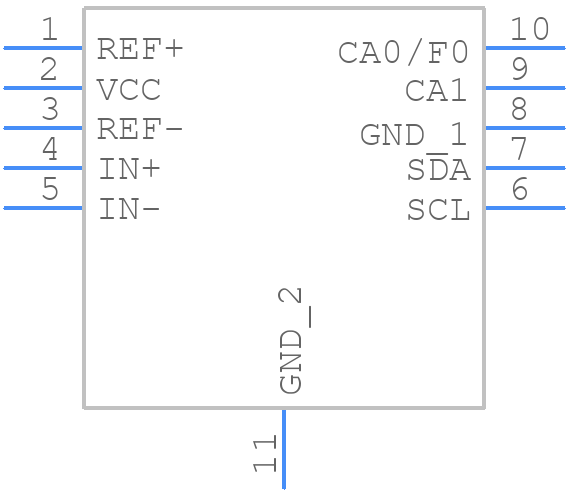

LTC2481CDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2481CDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-LEAD (3mm s 3mm) PLASTIC DFN*-*-
click to zoom
3D Models
LTC2481CDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-LEAD (3mm s 3mm) PLASTIC DFN*-*-
click to zoom

LTC2481CDD#PBF Details

  • Manufacturer Part Number:

    LTC2481CDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Conversion Time-Max:

    149900 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2481CDD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2481CDD involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) to minimize noise.
  • To ensure accurate temperature measurement, it's essential to use a thermistor with a high accuracy rating, ensure good thermal contact between the thermistor and the device being measured, and calibrate the system to account for any offsets or non-linearities.
  • The maximum cable length for the LTC2481CDD's digital interface depends on the specific application and the type of cable used. As a general rule, it's recommended to keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and noise.
  • While the LTC2481CDD is optimized for use with thermistors, it can be used with other types of temperature sensors, such as RTDs or thermocouples, with some modifications to the circuit and calibration. However, the accuracy and performance may vary depending on the specific sensor used.
  • To minimize EMI and RFI, use a shielded cable for the digital interface, keep the device away from sources of electromagnetic radiation, and use a low-pass filter or ferrite bead to filter out high-frequency noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2481CDD#PBF Overview

Use the download button to access the LTC2481CDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC24, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to LTC2481CDD#PBF

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

LTC2481CDD#PBF Alternates

Showing results

Image Part Number Model
Part Image LTC2481CDD Analog Devices Inc

ADC, Delta-Sigma, 16-Bit, 1 Func, 1 Channel, Serial Access, Bipolar, PDSO10
Part Image LTC2481HDD#TRPBF Linear Technology

ADC, Delta-Sigma, 16-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO10
Part Image LTC2481CDD#TRPBF Linear Technology

ADC, Delta-Sigma, 16-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO10
Part Image LTC2481IDD#TR Analog Devices Inc

ADC, Delta-Sigma, 16-Bit, 1 Func, 1 Channel, Serial Access, Bipolar, PDSO10
Part Image LTC2481CDD#TR Analog Devices Inc

ADC, Delta-Sigma, 16-Bit, 1 Func, 1 Channel, Serial Access, Bipolar, PDSO10
For a full list of alternate parts for LTC2481CDD#PBF, check out Findchips.com
