LTC2500IDKD-32#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 32-B Over-Smpl ADC w/ Config Dig Filt

Download LTC2500IDKD-32#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

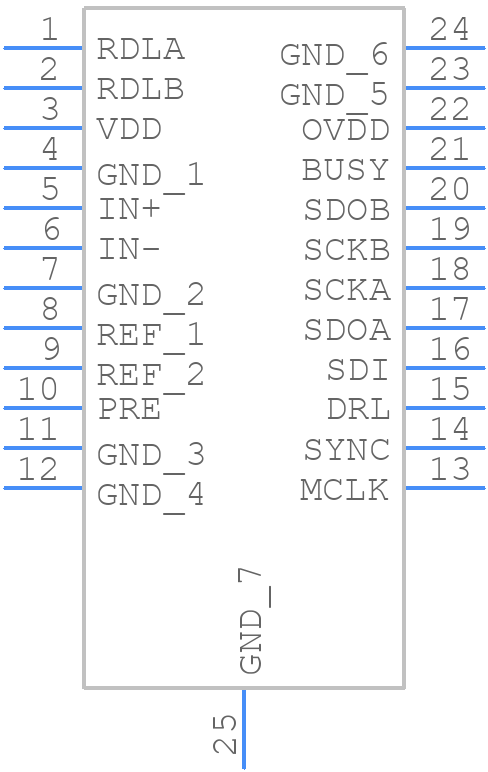

LTC2500IDKD-32#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2500IDKD-32#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 24-Lead Plastic DFN (7mm × 4mm)
click to zoom
3D Models
LTC2500IDKD-32#PBF - Analog Devices - 3D model - Small Outline No-lead - 24-Lead Plastic DFN (7mm × 4mm)
click to zoom

LTC2500IDKD-32#PBF Details

  • Manufacturer Part Number:

    LTC2500IDKD-32#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1864

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    0.66 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-N24

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0002%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

LTC2500IDKD-32#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • To ensure accuracy, make sure to follow the recommended calibration procedure, use a high-quality reference voltage, and minimize noise and interference in the system. Also, ensure that the input signals are within the specified range and that the ADC is not saturated.
  • The maximum sampling rate of the LTC2500IDKD-32#PBF is 250kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the input signal's bandwidth, and the system's noise floor.
  • The digital output data from the LTC2500IDKD-32#PBF is in a 32-bit format, with the most significant 24 bits representing the ADC conversion result and the least significant 8 bits representing the channel and status information. The data can be processed and analyzed using a microcontroller or a digital signal processor.
  • The power consumption of the LTC2500IDKD-32#PBF depends on the operating mode and the clock frequency. In normal operation, the typical power consumption is around 35mW. In shutdown mode, the power consumption is around 1uA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2500IDKD-32#PBF Overview

Use the download button to access the LTC2500IDKD-32#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC25, or try a keyword search, such as Analog to Digital Converters
