LTC2862ACDD-2#PBF - Analog Devices

Description: ?60V Fault Protected 3V to 5.5V RS485/RS422 Transceiver with Level 4 IEC ESD

Download LTC2862ACDD-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

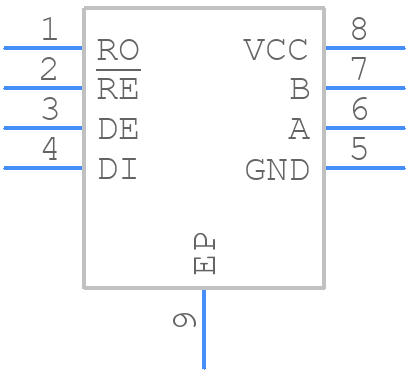

LTC2862ACDD-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2862ACDD-2#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)
click to zoom
3D Models
LTC2862ACDD-2#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)
click to zoom

LTC2862ACDD-2#PBF Details

  • Manufacturer Part Number:

    LTC2862ACDD-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    700 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3 mm

LTC2862ACDD-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2862 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer board with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • The LTC2862 requires a proper power-up sequence to ensure correct operation. The VCC pin should be powered up first, followed by the VDD pin. The EN pin should be pulled high to enable the device. Additionally, the datasheet provides a recommended power-up sequence and configuration guidelines that should be followed.
  • The LTC2862 can support data rates up to 100Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity. The datasheet provides guidelines for achieving high-speed data transmission.
  • To troubleshoot issues with the LTC2862, start by verifying the power-up sequence and configuration. Check the signal integrity and PCB layout to ensure they meet the recommended guidelines. Use oscilloscopes and logic analyzers to debug the signal transmission and reception. The datasheet provides troubleshooting guidelines and a FAQ section that can be helpful.
  • The LTC2862 is a RS-485 transceiver, and it is not directly compatible with other interfaces like SPI or I2C. However, it can be used in conjunction with other ICs that provide SPI or I2C interfaces to create a hybrid interface solution.
