LTC2862AHDD-2#PBF - Analog Devices

Description: RS-422/RS-485 Interface IC 250kbps 60V Fault Protected RS485 Transceiver (Half Duplex + Enables)

Download LTC2862AHDD-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

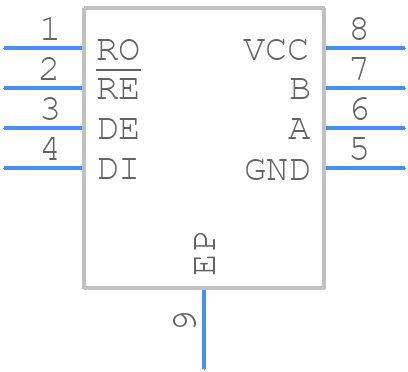

Symbol
LTC2862AHDD-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2862AHDD-2#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC2862AHDD-2#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC2862AHDD-2#PBF Details

  • Manufacturer Part Number:

    LTC2862AHDD-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    700 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3 mm

LTC2862AHDD-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2862AHDD-2#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the IC to the power supply and load. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure the stability of the output voltage, it is essential to follow the recommended capacitor selection and placement guidelines, use a low-ESR output capacitor, and ensure that the input voltage is within the recommended range. Additionally, the output voltage should be decoupled with a 10uF ceramic capacitor.
  • The maximum ambient temperature range for the LTC2862AHDD-2#PBF is -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range.
  • Yes, the LTC2862AHDD-2#PBF is suitable for high-reliability and aerospace applications. However, it is essential to follow the recommended design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the LTC2862AHDD-2#PBF, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2862AHDD-2#PBF Overview

Use the download button to access the LTC2862AHDD-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC28, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
