LTC2862IDD-1#PBF - Analog Devices

Description: Protected from Overvoltage Line Faults to ±60V n 3V to 5.5V Supply Voltage n 20Mbps or Low EMI 250kbps Data Rate n ±15kV ESD Interface Pins, ±8kV All Other Pins n Extended Common Mode Range: ±25V n Guaranteed Failsafe Receiver Operation n High Input Impedance Supports 256 Nodes n 1.65V to 5.5V Logic Supply Pin (VL) for Flexible Digital Interface (LTC2865) n MP-Grade Option Available (–55°C to 125°C) n Fully Balanced Differential Receiver Thresholds for Low Duty Cycle Distortion n Current Limited

Download LTC2862IDD-1#PBF Model

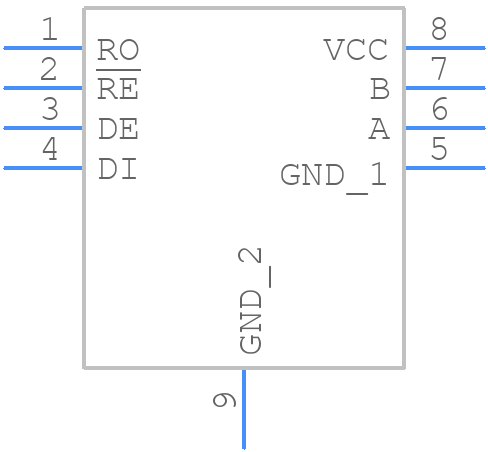

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC2862IDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)
click to zoom
3D Models
LTC2862IDD-1#PBF - Analog Devices  - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)
click to zoom

LTC2862IDD-1#PBF Details

  • Manufacturer Part Number:

    LTC2862IDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    65 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    50 ns

  • Width:

    3 mm

LTC2862IDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2862IDD-1#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The LTC2862IDD-1#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements involve powering the device after the input voltage has reached its nominal value, and ensuring that the power supply is stable before enabling the device.
  • The LTC2862IDD-1#PBF has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, ensure that the device is operated within its recommended operating conditions and avoid excessive power dissipation.
  • To troubleshoot issues with the LTC2862IDD-1#PBF, start by verifying the power supply and input voltage, then check the output voltage and current. Common pitfalls to avoid include incorrect power sequencing, inadequate decoupling, and poor PCB layout. Additionally, ensure that the device is operated within its recommended operating conditions and avoid exceeding the maximum ratings.
  • The LTC2862IDD-1#PBF is designed to meet the EMI and RFI requirements of various regulatory bodies. To ensure compliance, follow proper PCB layout and design practices, use shielding and filtering as necessary, and ensure that the device is operated within its recommended operating conditions. Additionally, consult the relevant regulatory standards and guidelines for your specific application.
