LTC2864CS-2#PBF - Analog Devices

Description: ±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers

Download LTC2864CS-2#PBF Model

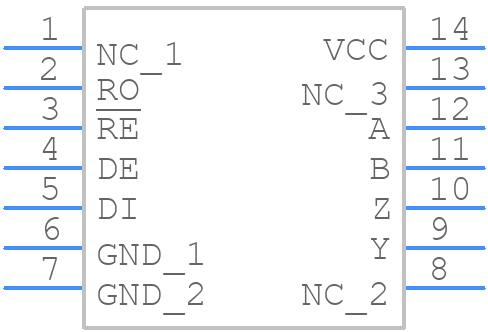

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC2864CS-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 14-Lead Plastic Small Outline (Narrow .150 Inch) (Reference LTC DWG # 05-08-1610 Rev G)
click to zoom
3D Models
LTC2864CS-2#PBF - Analog Devices  - 3D model - Small Outline Packages - S Package 14-Lead Plastic Small Outline (Narrow .150 Inch) (Reference LTC DWG # 05-08-1610 Rev G)
click to zoom

LTC2864CS-2#PBF Details

  • Manufacturer Part Number:

    LTC2864CS-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1610 (S14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.649 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    65 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3.899 mm

LTC2864CS-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2864CS-2#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded inductor and keeping the switching node (SW) away from sensitive analog nodes can help minimize EMI and noise.
  • To optimize the compensation network for the LTC2864CS-2#PBF, start by following the recommended compensation network values in the datasheet. Then, use simulation tools or empirical methods to fine-tune the values based on the specific application requirements and PCB layout. It's also important to consider the output capacitor's ESR and the inductor's DCR when selecting the compensation components.
  • The LTC2864CS-2#PBF has a maximum junction temperature of 125°C. To ensure reliable operation at high temperatures, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink attached to the device. Additionally, reducing the power dissipation by optimizing the design and using a low-ESR output capacitor can help minimize thermal issues.
  • To troubleshoot and debug issues with the LTC2864CS-2#PBF, start by checking the power supply voltage, output voltage, and input voltage for any anomalies. Use an oscilloscope to observe the waveforms and look for signs of oscillation or instability. Check the PCB layout and component values to ensure they match the recommended values in the datasheet. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.
  • The LTC2864CS-2#PBF and LTC2865 are both high-performance, low-power DC/DC converters, but they have some key differences. The LTC2864CS-2#PBF has a higher switching frequency (2.2MHz vs. 1.1MHz) and a lower quiescent current (350μA vs. 500μA) compared to the LTC2865. The LTC2864CS-2#PBF also has a wider input voltage range (2.7V to 5.5V vs. 2.7V to 5V) and a higher output current capability (2A vs. 1.5A).
