LTC2864HS-1#PBF - Analog Devices

Description: ±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers

Download LTC2864HS-1#PBF Model

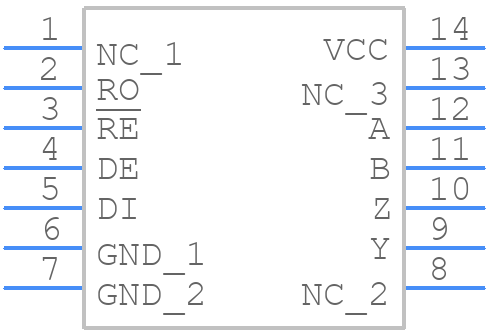

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC2864HS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 14-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC2864HS-1#PBF - Analog Devices  - 3D model - Small Outline Packages - S Package 14-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC2864HS-1#PBF Details

  • Manufacturer Part Number:

    LTC2864HS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1610 (S14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.649 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    65 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    50 ns

  • Width:

    3.899 mm

LTC2864HS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2864HS-1#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To ensure reliable operation over the entire operating temperature range of -40°C to 125°C, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, ensure that the device is operated within its specified power dissipation limits.
  • Operating the LTC2864HS-1#PBF at a lower voltage supply than the recommended 3.3V or 5V may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher voltage supply may exceed the device's absolute maximum ratings, leading to permanent damage or failure.
  • To troubleshoot issues with the I2C interface, start by verifying the clock frequency and signal integrity. Check for proper termination, pull-up resistors, and signal routing. Use an oscilloscope to monitor the SCL and SDA lines for errors, and ensure that the device is properly addressed and configured.
  • The LTC2864HS-1#PBF has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD per the Human Body Model (HBM). To prevent latch-up, ensure that the device is operated within its specified power supply voltage range, and avoid applying voltage to any pin that exceeds the recommended maximum rating.
