LTC2873HUFD#PBF - Analog Devices

Description: Single-Bus RS485/RS232 Multiprotocol Transceiver with Switchable Termination

Download LTC2873HUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

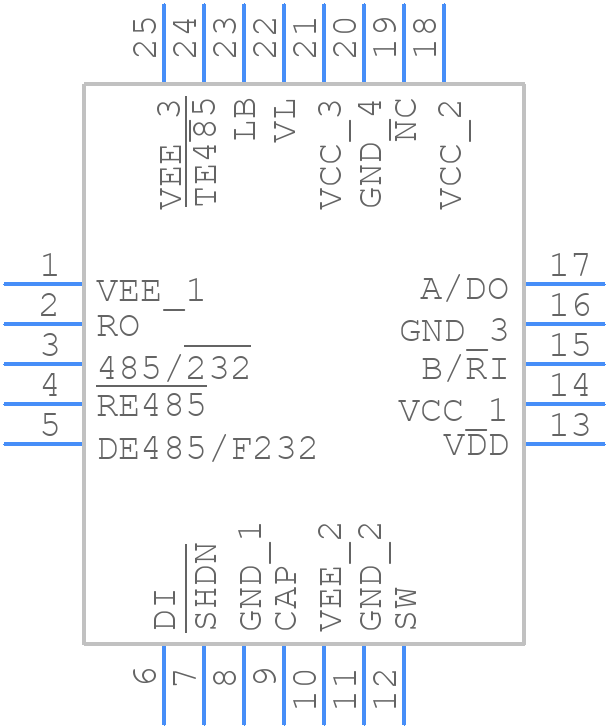

LTC2873HUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2873HUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LTC2873HUFD#PBF*
click to zoom
3D Models
LTC2873HUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LTC2873HUFD#PBF*
click to zoom

LTC2873HUFD#PBF Details

  • Manufacturer Part Number:

    LTC2873HUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1696

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CAN ALSO BE CONFIGURED AS RS-485/422 TRANSCEIVER

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Transmit Delay-Max:

    3000 ns

  • Width:

    4 mm

LTC2873HUFD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2873HUFD involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, keep the analog and digital signal traces separate and avoid crossing them over each other.
  • To ensure reliable operation of the LTC2873HUFD in high-temperature environments, make sure to follow proper thermal design guidelines. This includes providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device away from heat sources. Also, ensure that the device is operated within its specified temperature range (-40°C to 125°C).
  • To minimize EMI issues with the LTC2873HUFD, use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters on the input and output lines. Additionally, use a common-mode choke on the input lines and ensure that the PCB layout is designed to minimize radiation.
  • To troubleshoot issues with the LTC2873HUFD, start by checking the power supply voltage and ensuring that it is within the specified range. Then, verify that the input and output signals are within the specified ranges. Use an oscilloscope to check for signal integrity and look for signs of oscillation or noise. If the issue persists, consult the datasheet and application notes for guidance.
  • When using the LTC2873HUFD in a redundant or fault-tolerant system, ensure that the devices are properly synchronized and that the system is designed to handle device failures. Use redundant power supplies and ensure that the system can continue to operate even if one device fails. Additionally, implement a fault detection and isolation mechanism to quickly identify and isolate faulty devices.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2873HUFD#PBF Overview

Use the download button to access the LTC2873HUFD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC28, or try a keyword search, such as Line Driver or Receivers
