LTC2876HMS8E#TRPBF - Analog Devices

Description: RS-485 Interface IC 60V Rugged PROFIBUS RS485 Trans

Download LTC2876HMS8E#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

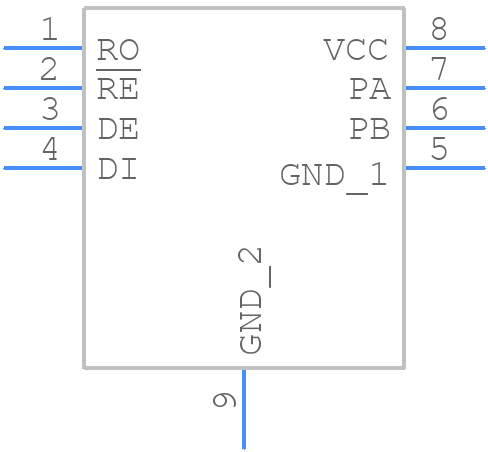

LTC2876HMS8E#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2876HMS8E#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_11
click to zoom
3D Models
LTC2876HMS8E#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_11
click to zoom

LTC2876HMS8E#TRPBF Details

  • Manufacturer Part Number:

    LTC2876HMS8E#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATE WITH 3V SUPPLY

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    70 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    50 ns

  • Width:

    3 mm

LTC2876HMS8E#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2876HMS8E involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the connectors. A 4-layer PCB with a dedicated power plane is also recommended. Refer to the Analog Devices application note AN136 for more details.
  • To ensure reliable operation of the LTC2876HMS8E in high-temperature environments, make sure to follow the recommended operating conditions, use a heat sink if necessary, and ensure good airflow around the device. Also, consider using a thermally conductive material for the PCB and ensure that the device is not exposed to temperatures above the recommended maximum junction temperature of 150°C.
  • The maximum cable length supported by the LTC2876HMS8E depends on the specific application and the type of cable used. However, as a general rule, the maximum cable length should not exceed 10 meters for RS-485 and 100 meters for RS-232. It's also important to consider the cable's capacitance, inductance, and resistance when designing the system.
  • Yes, the LTC2876HMS8E can be used with a 3.3V power supply. The device has a wide operating voltage range of 3.0V to 5.5V, making it compatible with 3.3V systems. However, ensure that the power supply is stable and can provide the required current to the device.
  • To troubleshoot communication issues with the LTC2876HMS8E, start by checking the power supply and ensuring that the device is properly configured. Use a logic analyzer or oscilloscope to verify the signal integrity and timing. Check the termination resistors, cable connections, and ensure that the baud rate and data format are correctly set. Refer to the datasheet and application notes for more troubleshooting tips.
