LTC2879XMS8E#TRPBF - Analog Devices

Description: LTC2879XMS8E#TRPBF

Download LTC2879XMS8E#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

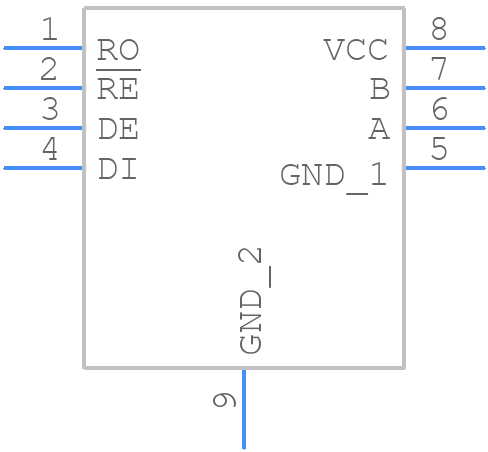

Symbol
LTC2879XMS8E#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2879XMS8E#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom
3D Models
LTC2879XMS8E#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom

LTC2879XMS8E#TRPBF Details

  • Manufacturer Part Number:

    LTC2879XMS8E#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485-A; TIA-485-A; EIA-422

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Receive Delay-Max:

    75 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    50 ns

  • Width:

    3 mm

LTC2879XMS8E#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2879 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the transformer. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure reliable operation of the LTC2879 in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and keeping the IC away from heat sources. The datasheet provides thermal resistance and junction-to-case thermal resistance values that can be used to estimate the junction temperature.
  • When selecting a transformer for use with the LTC2879, key considerations include the turns ratio, inductance, and core material. The transformer should be designed to operate at the switching frequency of the IC (typically 1-2 MHz) and should have a low leakage inductance to minimize energy losses. The datasheet provides guidelines for transformer selection and design.
  • To troubleshoot issues with the LTC2879, it is essential to follow a systematic approach. This includes checking the power supply, input and output voltages, and signal waveforms using an oscilloscope. The datasheet provides a troubleshooting guide that can be used to identify and resolve common issues. Additionally, Analog Devices provides application notes and technical support resources that can be used to resolve complex issues.
  • The LTC2879 is a high-performance, high-power isolated DC-DC converter that offers several advantages over other similar products from Analog Devices. These include a higher power rating, faster switching frequency, and lower power losses. The LTC2879 also has a more comprehensive set of protection features, including overcurrent protection, undervoltage lockout, and thermal shutdown. The datasheet provides a detailed comparison of the LTC2879 with other similar products.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2879XMS8E#TRPBF Overview

Use the download button to access the LTC2879XMS8E#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC28, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to LTC2879XMS8E#TRPBF
