LTC2910IGN#PBF - Analog Devices

Description: Linear Technology LTC2910IGN#PBF, Octal Voltage Supervisor, 1.2 → 12 V, Reset Input, 16-Pin SSOP

Download LTC2910IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

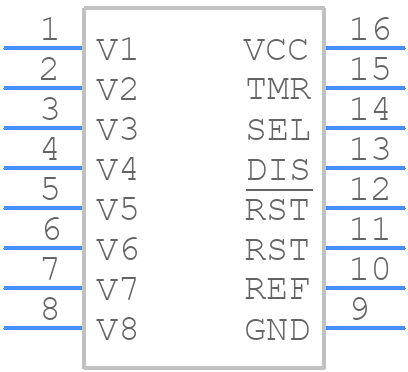

LTC2910IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2910IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow 0.150)
click to zoom
3D Models
LTC2910IGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow 0.150)
click to zoom

LTC2910IGN#PBF Details

  • Manufacturer Part Number:

    LTC2910IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2910IGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2910IGN involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence: VCC, then EN, then VIN. Also, make sure to tie the EN pin high to enable the device, and configure the MODE pin according to the desired operating mode.
  • When selecting input and output capacitors, consider the voltage rating, capacitance value, and ESR (Equivalent Series Resistance). Choose capacitors with a voltage rating higher than the maximum input voltage, and a capacitance value that meets the recommended range (e.g., 10uF to 22uF). Low ESR capacitors are recommended to minimize power losses.
  • To troubleshoot issues with the LTC2910IGN, start by checking the input voltage, output voltage, and enable pin (EN) status. Verify that the device is properly powered up and configured. Use an oscilloscope to monitor the input and output waveforms, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The LTC2910IGN has a maximum junction temperature (TJ) of 125°C. To ensure reliable operation, follow proper thermal design practices: use a heat sink or thermal pad, keep the device away from heat sources, and ensure good airflow. Monitor the device temperature and adjust the thermal design as needed to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2910IGN#PBF Overview

Use the download button to access the LTC2910IGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
