LTC2914CGN-2#PBF - Analog Devices

Description: Quad UV/OV Positive/Negative Voltage Monitor, 16-SSOP, 0°C to 70°C

Download LTC2914CGN-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

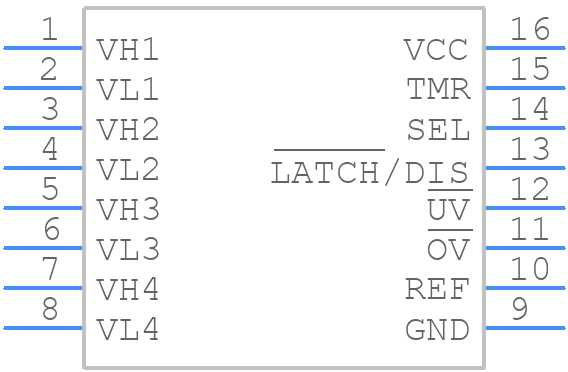

LTC2914CGN-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2914CGN-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic SSOP_2026
click to zoom
3D Models
LTC2914CGN-2#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic SSOP_2026
click to zoom

LTC2914CGN-2#PBF Details

  • Manufacturer Part Number:

    LTC2914CGN-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BIPOLAR UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2914CGN-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2914CGN-2#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure accurate voltage monitoring with the LTC2914CGN-2#PBF, it's essential to use a high-accuracy voltage reference, such as the LTC6655-5, and to minimize noise and interference on the voltage sense lines. Additionally, the voltage sense lines should be kept short and shielded, and the device should be operated within its specified temperature range.
  • The LTC2914CGN-2#PBF is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics and ensure that the junction temperature remains within the specified range. This may require additional thermal management, such as heat sinking or airflow, depending on the specific application.
  • The LTC2914CGN-2#PBF can be interfaced with a microcontroller or FPGA using a standard I2C or SPI interface. The device's address pins (A0, A1, and A2) can be used to set the device address, and the interface can be configured using the device's control registers. It's essential to follow the interface timing and protocol specifications to ensure reliable communication.
  • The typical power consumption of the LTC2914CGN-2#PBF is around 1.5mA, but this can vary depending on the device's configuration, operating frequency, and input voltage. It's essential to consider the device's power consumption when designing the power supply and thermal management for the system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2914CGN-2#PBF Overview

Use the download button to access the LTC2914CGN-2#PBF schematic symbol, PCB footprint, and 3D model.
