LTC2914IGN-1#PBF - Analog Devices

Description: Supervisory Circuits Quad UV/OV Monitor

Download LTC2914IGN-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

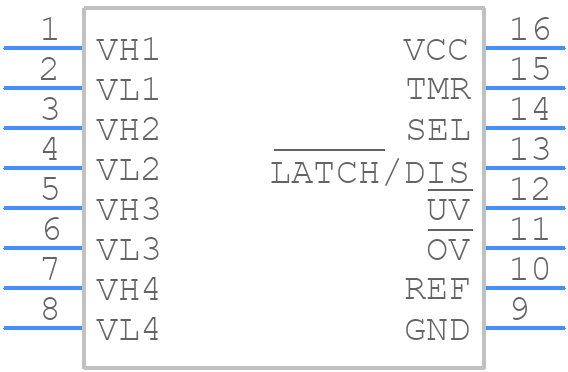

Symbol
LTC2914IGN-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2914IGN-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC2914IGN-1#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC2914IGN-1#PBF Details

  • Manufacturer Part Number:

    LTC2914IGN-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BIPOLAR UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2914IGN-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2914IGN-1#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The LTC2914IGN-1#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device from a low-noise, low-impedance source. The power sequencing requirements are not critical, but it's recommended to power the device after the power supply has stabilized.
  • The LTC2914IGN-1#PBF can drive capacitive loads up to 100pF. However, it's recommended to limit the capacitive load to 10pF to ensure optimal performance and minimize ringing.
  • To troubleshoot issues with the LTC2914IGN-1#PBF, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input signals and ensure they are within the recommended range. Use an oscilloscope to verify the output signals and check for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for guidance.
  • The thermal resistance of the LTC2914IGN-1#PBF is 45°C/W. To ensure proper thermal management, it's recommended to provide adequate airflow around the device, use a heat sink if necessary, and ensure that the device is not exposed to high ambient temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2914IGN-1#PBF Overview

Use the download button to access the LTC2914IGN-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
