LTC2919HDDB-5#TRMPBF - Analog Devices

Description: Supervisor Open Drain or Open Collector 3 Channel 10-DFN (3x2)

Download LTC2919HDDB-5#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

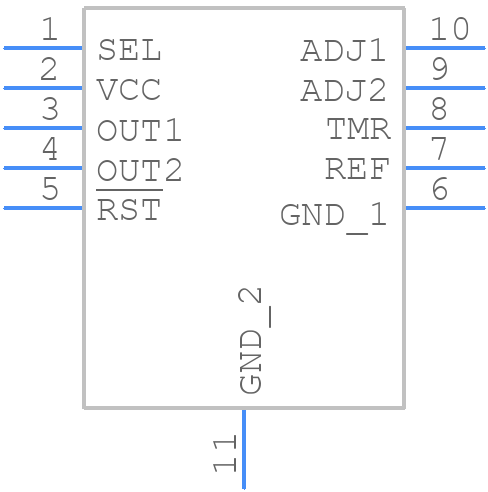

Symbol
LTC2919HDDB-5#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2919HDDB-5#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Plastic DFN (3mm × 2mm)
click to zoom
3D Models
LTC2919HDDB-5#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead Plastic DFN (3mm × 2mm)
click to zoom

LTC2919HDDB-5#TRMPBF Details

  • Manufacturer Part Number:

    LTC2919HDDB-5#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 2 MM, LEAD FREE, PLASTIC, MO-229WECD-1, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1722

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BIPOLAR UNDER/OVERVOLTAGE SUPERVISOR
