LTC2930IDD#PBF - Analog Devices

Description: Linear Technology LTC2930IDD#PBF, 6-channel Processor Supervisor 4.6 → 4.75 V, Reset Input, 12-Pin DFN

Download LTC2930IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

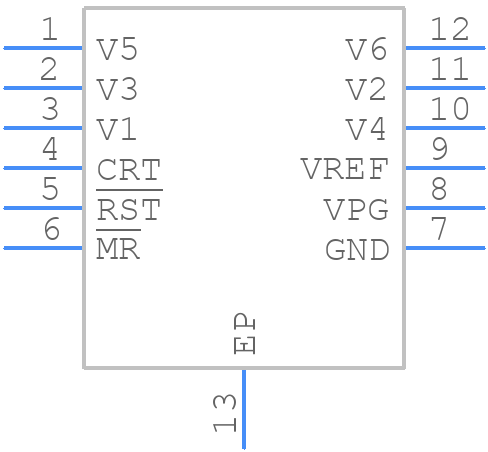

Symbol
LTC2930IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2930IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3m-m)_--
click to zoom
3D Models
LTC2930IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3m-m)_--
click to zoom

LTC2930IDD#PBF Details

  • Manufacturer Part Number:

    LTC2930IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2930IDD#PBF Frequently Asked Questions (FAQs)

  • The LTC2930 requires careful layout and placement to ensure proper operation. It is recommended to place the device close to the battery, use a solid ground plane, and keep the input and output capacitors close to the device. Additionally, the device should be placed away from high-current carrying traces and heat sources.
  • To optimize the performance of the LTC2930, it is recommended to carefully select the input and output capacitors, choose the correct inductor value, and optimize the switching frequency. Additionally, the device's operating mode (e.g. burst mode, low-power mode) should be selected based on the application's requirements.
  • The LTC2930 has a maximum junction temperature of 125°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad, and the PCB should be designed to dissipate heat effectively. Additionally, the device should be operated within its recommended operating temperature range.
  • To troubleshoot issues with the LTC2930, it is recommended to check the input voltage, output voltage, and current consumption. Additionally, the device's operating mode, switching frequency, and thermal performance should be monitored. If issues persist, it may be necessary to consult the datasheet, application notes, or contact Analog Devices' technical support.
  • The LTC2930 is a switching regulator, and as such, it can generate electromagnetic interference (EMI). To minimize EMI, it is recommended to use a shielded inductor, keep the layout compact, and use a common-mode choke or EMI filter if necessary.
