LTC2936IGN#PBF - Analog Devices

Description: Programmable Hex Voltage Supervisor with EEPROM and Comparator Outputs

Download LTC2936IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

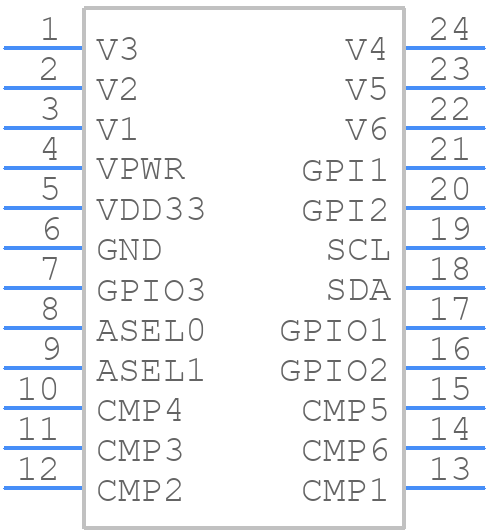

Symbol
LTC2936IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2936IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 24-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC2936IGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 24-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC2936IGN#PBF Details

  • Manufacturer Part Number:

    LTC2936IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1641 (GN24)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    13.9 V

  • Supply Voltage-Min (Vsup):

    3.4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1V

  • Width:

    3.9 mm

LTC2936IGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2936IGN#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device away from high-current carrying traces and to use a low-ESR capacitor for the output filter.
  • The selection of the output capacitor for the LTC2936IGN#PBF depends on the desired output voltage ripple, output current, and operating frequency. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. The capacitor should also have a low ESR (Equivalent Series Resistance) to minimize output voltage ripple.
  • The maximum input voltage that the LTC2936IGN#PBF can handle is 15V. Exceeding this voltage can cause damage to the device. It is recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage does not exceed the maximum rating.
  • The output voltage of the LTC2936IGN#PBF can be programmed using the VOUT pin. The VOUT pin is connected to a resistive divider network that sets the output voltage. The output voltage can be calculated using the formula: VOUT = (R1/R2) * (VREF - VFB), where R1 and R2 are the resistors in the divider network, VREF is the internal reference voltage, and VFB is the feedback voltage.
  • The thermal shutdown temperature of the LTC2936IGN#PBF is 150°C. If the device temperature exceeds this value, the device will shut down to prevent damage. The device will automatically restart when the temperature drops below 140°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2936IGN#PBF Overview

Use the download button to access the LTC2936IGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
